STP65N045M9 - N-channel Power MOSFET

STP65N045M9 Description

STP65N045M9 Datasheet N-channel 650 V, 39 mΩ typ., 54 A MDmesh M9 Power MOSFET in a TO-220 package .
S(3) AM01475v1_noZen This N-channel Power MOSFET is based on the most innovative super-junction MDmesh M9 technology, suitable for medium/high volt.

STP65N045M9 Features

* TAB TO-220 1 23 D(2, TAB) Order code VDS RDS(on) max. ID STP65N045M9 650 V 45 mΩ 54A
* Worldwide best FOM RDS(on)
* Qg among silicon-based devices
* Higher VDSS rating
* Higher dv/dt capability
* Excellent switching performance
* Easy to d

STP65N045M9 Applications

* G(1)

📥 Download Datasheet

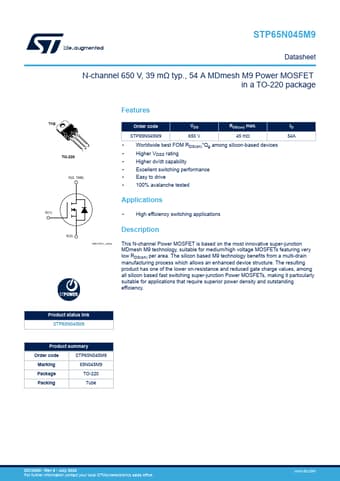

Preview of STP65N045M9 PDF
datasheet Preview Page 2 datasheet Preview Page 3
