STP65N150M9 - N-CHANNEL Power MOSFET

STP65N150M9 Description

STP65N150M9 Datasheet N-channel 650 V, 128 mΩ typ., 20 A MDmesh M9 Power MOSFET in a TO-220 package TAB TO-220 1 23 D(2, TAB) .
S(3) AM01476v1_tab This N-channel Power MOSFET is based on the most innovative super-junction MDmesh M9 technology, suitable for medium/high voltage M.

STP65N150M9 Features

* Order code VDS RDS(on) max. ID STP65N150M9 650 V 150 mΩ 20 A
* Worldwide best FOM RDS(on)
* Qg among silicon-based devices
* Higher VDSS rating
* Higher dv/dt capability
* Excellent switching performance
* Easy to drive
* 100% avalanche test

📥 Download Datasheet

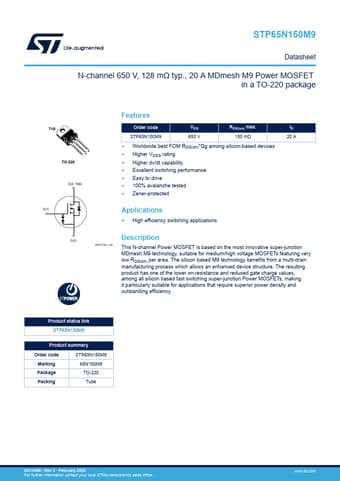

Preview of STP65N150M9 PDF
datasheet Preview Page 2 datasheet Preview Page 3
