STP60NF10 Datasheet, Mosfet, STMicroelectronics

STP60NF10 Features

  • Mosfet Type STB60NF10 STB60NF10-1 STP60NF10 VDSS (@Tjmax) 100V 100V 100V RDS(on) <0.023Ω <0.023Ω <0.023Ω
  • Exceptional dv/dt capability
  • 100% avalanche tested ID 80A 80A

PDF File Details

Part number:

STP60NF10

Manufacturer:

STMicroelectronics ↗

File Size:

344.83kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input c

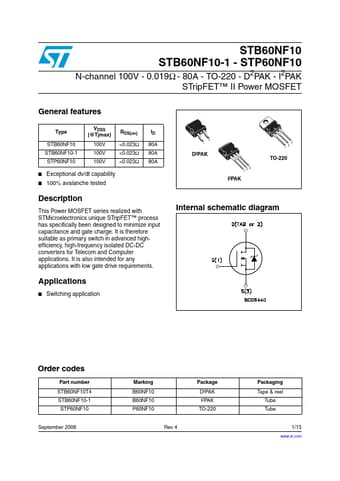

Datasheet Preview: STP60NF10 📥 Download PDF (344.83kb)
Page 2 of STP60NF10 Page 3 of STP60NF10

STP60NF10 Application

  • Applications It is also intended for any applications with low gate drive requirements. Applications
  • Switching application 3 1 D²PAK 1
