STP60N05-14 Datasheet - ST Microelectronics

STP60N05-14 N-CHANNEL Power MOSFET

STP60N05-14 STP60N06-14 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STP60N05-14 STP60N06-14 V DSS 50 V 60 V R DS(on) < 0.014 Ω < 0.014 Ω ID 60 A 60 A s s s s s s s s s TYPICAL RDS(on) = 0.012 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175 oC OPERATING TEMPERATURE VERY LOW RDS (on) APPLICATION ORIENTED CHARACTERIZATION 3 1 2 TO-220 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s .

STP60N05-14_STMicroelectronics.pdf

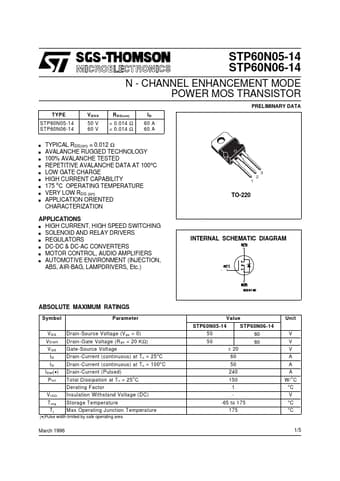

Preview of STP60N05-14 PDF
STP60N05-14 Datasheet Preview Page 2 STP60N05-14 Datasheet Preview Page 3

Datasheet Details

Part number:

STP60N05-14

Manufacturer:

STMicroelectronics ↗

File Size:

77.67 KB

Description:

N-channel power mosfet.
