STP60NF06FP Datasheet, Mosfet, STMicroelectronics

STP60NF06FP Features

• Mosfet Type STP60NF06FP VDSS 60V RDS(on) <0.016Ω ID 30A
• Exceptional dv/dt capability
• 100% avalanche tested
• Application oriented characterization Description

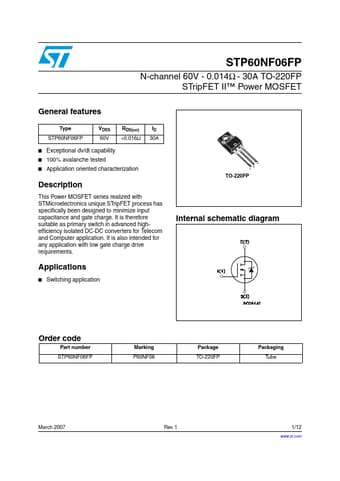

PDF File Details

Part number:

STP60NF06FP

Manufacturer:

STMicroelectronics ↗

File Size:

255.39kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input ca

STP60NF06FP Application

• Applications
• Switching application 3 2 1 TO-220FP Internal schematic diagram Order code Part number STP60NF06FP Marking P60NF06 Packag
