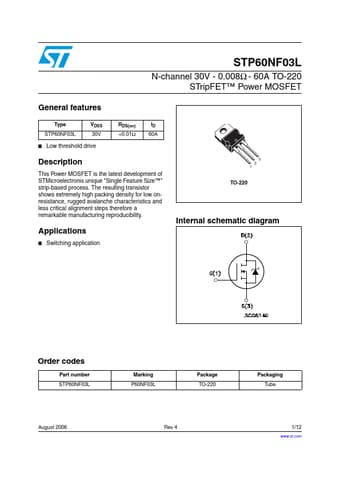

STP60NF03L Datasheet, Mosfet, ST Microelectronics

STP60NF03L Features

• Mosfet Type STP60NF03L VDSS 30V
• Low threshold drive RDS(on) <0.01Ω ID 60A Description This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Si

PDF File Details

Part number:

STP60NF03L

Manufacturer:

STMicroelectronics ↗

File Size:

232.81kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting tra

STP60NF03L Application

• Applications
• Switching application 3 2 1 TO-220 Internal schematic diagram Order codes Part number STP60NF03L August 2006 Marking P60NF
