STP60NF06 Datasheet, Mosfet, ST Microelectronics

STP60NF06 Features

  • Mosfet Type STP60NF06 VDSS 60V RDS(on) <0.016Ω ID 60A
  • Exceptional dv/dt capability
  • 100% avalanche tested
  • Application oriented characterization Description T

PDF File Details

Part number:

STP60NF06

Manufacturer:

STMicroelectronics ↗

File Size:

254.96kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input ca

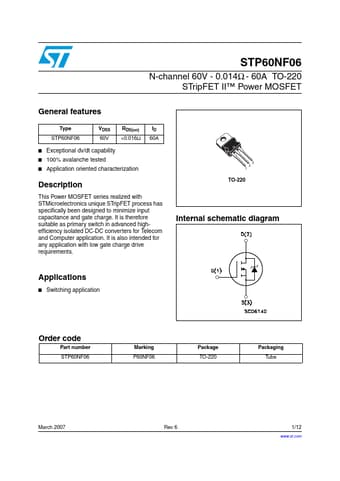

Datasheet Preview: STP60NF06 📥 Download PDF (254.96kb)
Page 2 of STP60NF06 Page 3 of STP60NF06

STP60NF06 Application

  • Applications
  • Switching application Order code Part number STP60NF06 Marking P60NF06 Package TO-220 Packaging Tube March 2007 Rev 6
