STP8NS25FP, STP8NS25 N - CHANNEL POWER MOSFET

ST Microelectronics

Description

N-CHANNEL 250V - 0.38Ω - 8A TO-220/TO-220FP MESH OVERLAY™ MOSFET TYPE STP8NS25 STP8NS25FP s s s STP8NS25 STP8NS25FP VDSS 250 V 250 V RDS(on) < 0.45.
Using the latest high voltage MESH OVERLAY ™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performance.

📥 Download Datasheet

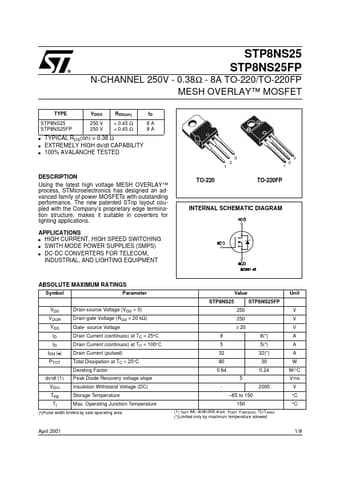

STP8NS25FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP8NS25FP, STP8NS25. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP8NS25FP, STP8NS25
Manufacturer: STMicroelectronics ↗
File Size: 329.08 KB
Datasheet: STP8NS25_STMicroelectronics.pdf
Description: N - CHANNEL POWER MOSFET
Note: This datasheet PDF includes multiple part numbers: STP8NS25FP, STP8NS25.
Please refer to the document for exact specifications by model.

Applications

* APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-DC CONVERTERS FOR TELECOM, INDUSTRIAL, AND LIGHTING EQUIPMENT TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter STP
