STP8NC70ZFP, STP8NC70Z - N-CHANNEL MOSFET

STMicroelectronics

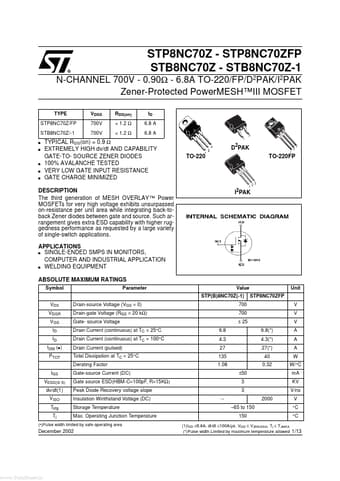

STP8NC70ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP8NC70ZFP, STP8NC70Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STP8NC70ZFP, STP8NC70Z
Manufacturer	STMicroelectronics ↗
File Size	438.56 KB
Description	N-CHANNEL MOSFET
Datasheet	STP8NC70Z_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STP8NC70ZFP, STP8NC70Z. Please refer to the document for exact specifications by model.

STP8NC70ZFP Product details

Description

The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toback Zener diodes between gate and source.

Features

OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener voltage is appropriate to achieve an efficient and cost-effective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components. 3/13 www. DataS.
