STP8NC50FP, STP8NC50 N-CHANNEL POWER MOSFET

ST Microelectronics

Description

N-CHANNEL 500V - 0.7 Ω - 8A TO-220/TO-220FP/I2PAK PowerMesh™II MOSFET TYPE STP(B)8NC50(-1) STP8NC50FP s s s s s STP8NC50 - STP8NC50FP STB8NC50-1 VDS.
The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. area figure.

📥 Download Datasheet

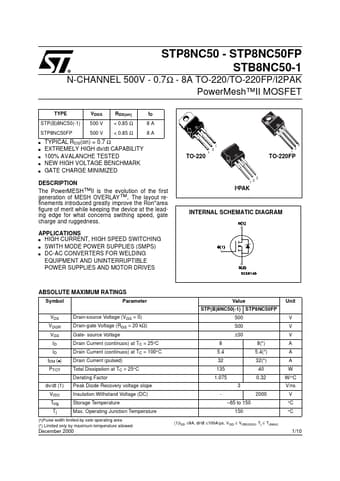

STP8NC50FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP8NC50FP, STP8NC50. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP8NC50FP, STP8NC50
Manufacturer: STMicroelectronics ↗
File Size: 352.28 KB
Datasheet: STP8NC50_STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET
Note: This datasheet PDF includes multiple part numbers: STP8NC50FP, STP8NC50.
Please refer to the document for exact specifications by model.

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVES s 12 3 I²PAK INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Param
