STP8NC60FP, STP8NC60 N-CHANNEL POWER MOSFET

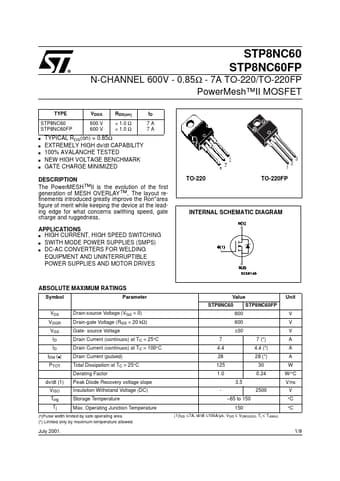

📥 Download Datasheet  Datasheet Preview Page 1

Description

N-CHANNEL 600V - 0.85Ω - 7A TO-220/TO-220FP PowerMesh™II MOSFET TYPE STP8NC60 STP8NC60FP s s s s s STP8NC60 STP8NC60FP VDSS 600 V 600 V RDS(on) < 1.
The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. area figure.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP8NC60FP, STP8NC60. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STP8NC60FP, STP8NC60
Manufacturer
STMicroelectronics ↗
File Size
326.40 KB
Datasheet
STP8NC60_STMicroelectronics.pdf
Description
N-CHANNEL POWER MOSFET
Note
This datasheet PDF includes multiple part numbers: STP8NC60FP, STP8NC60.
Please refer to the document for exact specifications by model.

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVES s TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter
