STP8N80K5 Datasheet, Mosfet, STMicroelectronics

STP8N80K5 Features

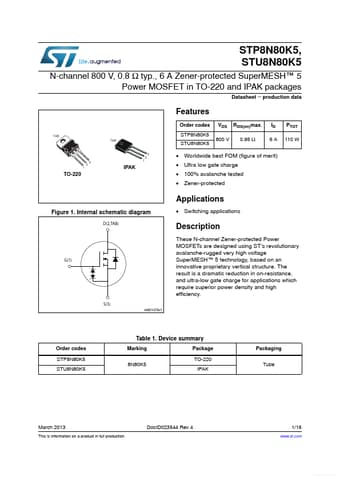

• Mosfet Order codes TAB VDS 800 V RDS(on)max. 0.95 Ω ID 6A PTOT 110 W STP8N80K5 TAB STU8N80K5 3 2 3 1 2 1
• Worldwide best FOM (figure of merit)
• Ultra low gate charge

PDF File Details

Part number:

STP8N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.19MB

Download:

📄 Datasheet

Description:

N-channel power mosfet. These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 t

STP8N80K5 Application

• Applications Figure 1. Internal schematic diagram D(2,TAB)
• Switching applications Description These N-channel Zener-protected Power MOSF
