STPS1H100

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS1H100 Features

* Negligible switching losses High junction temperature capability Low leakage cuurent Good trade-off between leakage current and forward voltage drop Avalanche capability specified DESCRIPTION Schottky rectifiers designed for high frequency miniature Switched Mode Powe

STPS1H100 General Description

Schottky rectifiers designed for high frequency miniature Switched Mode Power Supplies such as adaptators and on board DC/DC converters. Packaged in SMA or SMB. Table 2: Order Codes Part Number STPS1H100A STPS1H100U Marking S11 G11 Table 3: Absolute Ratings (limiting values) Symbol Parameter VRRM.

STPS1H100 Datasheet (253.86 KB)

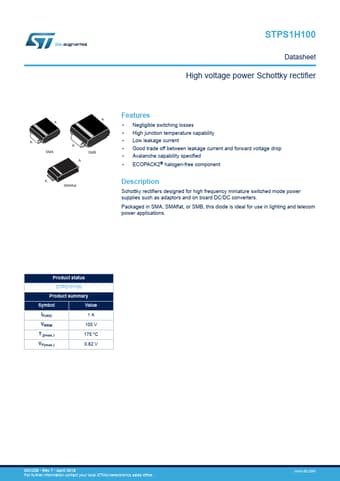

Preview of STPS1H100 PDF

Datasheet Details

Part number:

STPS1H100

Manufacturer:

STMicroelectronics ↗

File Size:

253.86 KB

Description:

High voltage power schottky rectifier.
® STPS1H100 HIGH VOLTAGE POWER SCHOTTKY RECTIFIER Table 1: Main Product Characteristics IF(AV) www.DataSheet4U.com 1A 100 V 175°C 0.62 V SMA (JEDEC.
