STPS1H100A

1A power Schottky rectifier

STPS1H100A Features

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Avalanche capability specified

* ECOPACK2 halogen-free component Description Schottky rectifi

STPS1H100A General Description

Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters. Packaged in SMA, SMA Flat, SMA Flat Notch,or SMB, this diode is ideal for use in lighting and telecom power applications. Product status STPS1H100 Product summary .

STPS1H100A Datasheet (425.82 KB)

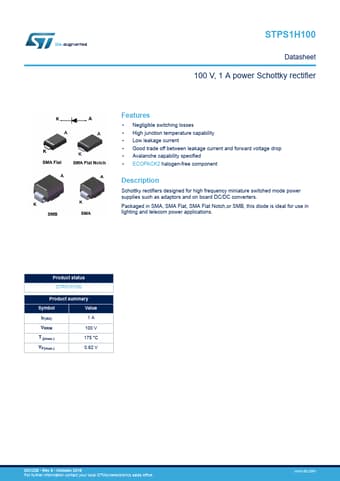

Preview of STPS1H100A PDF

Datasheet Details

Part number:

STPS1H100A

Manufacturer:

STMicroelectronics ↗

File Size:

425.82 KB

Description:

1a power schottky rectifier.
