STPS1H100-Y

Automotive high voltage power Schottky rectifier

STPS1H100-Y Features

* AEC-Q101 qualified

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Avalanche capability specified

* ECOPACK®2 compliant component

STPS1H100-Y General Description

Schottky rectifiers packaged in SMA or SMB, and designed for high frequency miniature switched mode power supplies as DC/DC converters for automotive applications. It is particularly suited for LED lighting applications, ADAS power, and ECU (Engine Control Unit) in automotive environment. Product s.

STPS1H100-Y Datasheet (237.70 KB)

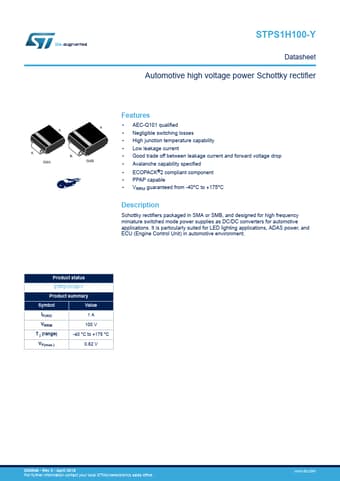

Preview of STPS1H100-Y PDF

Datasheet Details

Part number:

STPS1H100-Y

Manufacturer:

STMicroelectronics ↗

File Size:

237.70 KB

Description:

Automotive high voltage power schottky rectifier.
