STPS1H100U, STPS1H100A 1A power Schottky rectifier

STPS1H100U Description

STPS1H100 Datasheet 100 V, 1 A power Schottky rectifier .
Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

STPS1H100U Features

* Negligible switching losses
* High junction temperature capability
* Low leakage current
* Good trade off between leakage current and forward voltage drop
* Avalanche capability specified

STPS1H100U Applications

* Product status STPS1H100 Product summary Symbol Value IF(AV) 1A VRRM 100 V T j(max. ) 175 °C VF(max. ) 0.62 V DS1228 - Rev 8 - October 2019 For further information contact your local STMicroelectronics sales office. www. st. com STPS1H100 Characteristics 1 Characteristics Table 1. Abs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS1H100U, STPS1H100A. Please refer to the document for exact specifications by model.

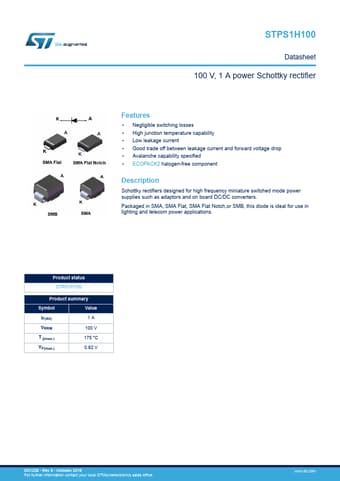

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS1H100U, STPS1H100A
Manufacturer
STMicroelectronics ↗
File Size
425.82 KB
Datasheet
STPS1H100A_STMicroelectronics.pdf
Description
1A power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS1H100U, STPS1H100A.
Please refer to the document for exact specifications by model.
