STPS3L60S Datasheet, Rectifier, ST Microelectronics

✔ STPS3L60S Features

Negligible switching losses
Low thermal resistance
Avalanche capability
Low forward voltage drop
ECOPACK®2 compliant Applications
Set-top box
Battery charge

✔ STPS3L60S Application

Set-top box
Battery charger
DC/DC converter
Telecom power
Switching diode Description Schottky rec

PDF File Details

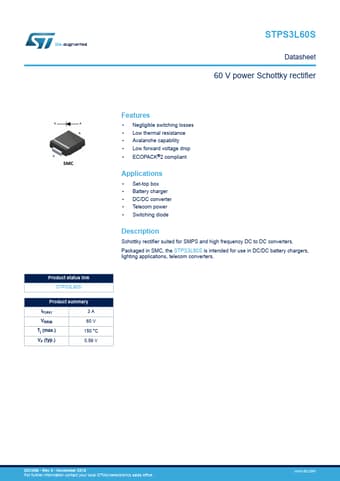

ST Microelectronics manufacturer logo and representative part image

Part number:

STPS3L60S

Manufacturer:

STMicroelectronics ↗

File Size:

194.78kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Schottky rectifier suited for SMPS and high frequency DC to DC converters. Packaged in SMC, the STPS3L60S is intended for use in DC/D

📥 Download PDF (194.78kb)
