STPS3L60U, STPS3L60 Schottky rectifier

STPS3L60U Description

STPS3L60 Datasheet 60 V, 3 A low drop Schottky rectifier Product status STPS3L60 Product summary Symbol Value IF(AV) 3A VRRM 60 V T j(max.) .
Axial and surface mount power Schottky rectifier suited for switch mode power supplies and high frequency dc to dc converters.

STPS3L60U Features

* Negligible switching losses
* Low forward voltage drop
* Avalanche rated

STPS3L60U Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS3L60U, STPS3L60. Please refer to the document for exact specifications by model.

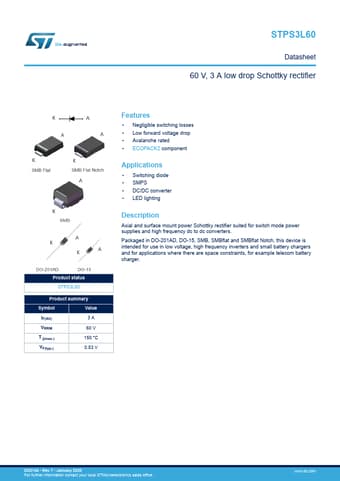

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS3L60U, STPS3L60
Manufacturer
STMicroelectronics ↗
File Size
282.20 KB
Datasheet
STPS3L60_STMicroelectronics.pdf
Description
Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS3L60U, STPS3L60.
Please refer to the document for exact specifications by model.
