STS3C3F30L N-CHANNEL POWER MOSFET

ST Microelectronics

Description

STS3C3F30L N-CHANNEL 30V - 0.050 Ω - 3.5A SO-8 P-CHANNEL 30V - 0.140 Ω - 3A SO-8 STripFET™ II POWER MOSFET TYPE STS3C3F30L(N-Channel) STS3C3F30L(P-Cha.
This application specific Power MOSFET is the second generation of STMicroelectronis unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

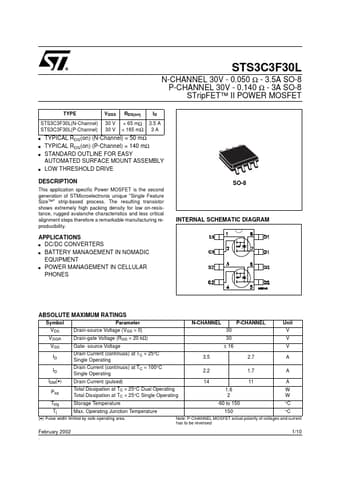

STS3C3F30L Datasheet Preview — Preview of STS3C3F30L PDF

Datasheet Specifications

Part number: STS3C3F30L
Manufacturer: STMicroelectronics ↗
File Size: 413.11 KB
Datasheet: STS3C3F30L_STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET

Applications

* s DC/DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN CELLULAR PHONES ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos)
