STS4DNF30L Dual N-CHANNEL POWER MOSFET

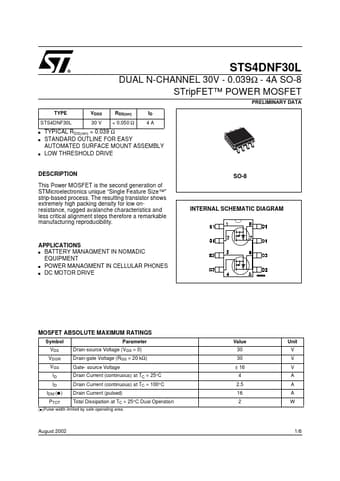

STS4DNF30L DUAL N-CHANNEL 30V - 0.039Ω - 4A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS4DNF30L s s VDSS 30 V RDS(on) < 0.050 Ω ID 4A s .
This Power MOSFET is the second generation of STMicroelectronics unique “Single Feature Size™” strip-based process.

STS4DNF30L_STMicroelectronics.pdf

STS4DNF30L Datasheet Preview — Preview of STS4DNF30L PDF

Datasheet Details

Part number:

STS4DNF30L

Manufacturer:

STMicroelectronics ↗

File Size:

135.76 KB

Description:

Dual N-CHANNEL POWER MOSFET

Applications

* BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGMENT IN CELLULAR PHONES s DC MOTOR DRIVE s MOSFET ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at TC = 25
