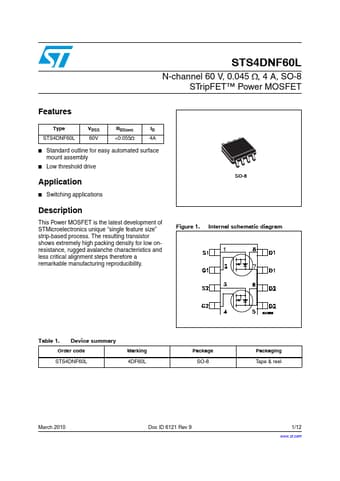

datasheet Preview Page 1 from Datasheet4u.com

STS4DNF60L N-CHANNEL POWER MOSFET

® STS4DNF60L N - CHANNEL 60V - 0.045Ω - 4A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS4DNF60L s s V DSS 60 V R DS(on) < 0.055 Ω ID 4A .
This Power MOSFET is the second generation of STMicroelectronics unique " Single Feature Size™ " strip-based process.

STS4DNF60L_STMicroelectronics.pdf

STS4DNF60L Datasheet Preview — Preview of STS4DNF60L PDF

Datasheet Details

Part number:

STS4DNF60L

Manufacturer:

STMicroelectronics ↗

File Size:

570.15 KB

Description:

N-CHANNEL POWER MOSFET

Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source Volta
