STS4DPF20L - Dual P-CHANNEL POWER MOSFET

STS4DPF20L Description

DUAL P-CHANNEL 20V - 0.07 Ω - 4A SO-8 STripFET™ POWER MOSFET TYPE STS4DPF20L s s STS4DPF20L VDSS 20 V RDS(on) <0.08 Ω ID 4A s TYPICAL RDS(on) = .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STS4DPF20L Applications

* s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN CELLULAR PHONES SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID IDM(
* ) Ptot Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continu

📥 Download Datasheet

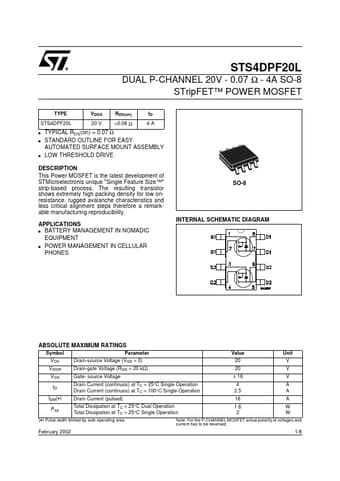

Preview of STS4DPF20L PDF
