STS4DPFS20L

P-CHANNEL POWER MOSFET

ST Microelectronics

STS4DPFS20L General Description

This product associates the latest low voltage STripFET™ in p-channel version to a low drop Schottky diode. Such configuration is extremely versatile in implementing, a large variety of DC-DC converters for printers, portable equipment, and cellular phones. INTERNAL SCHEMATIC DIAGRAM MOSFET ABSOLU.

STS4DPFS20L Datasheet (259.97 KB)

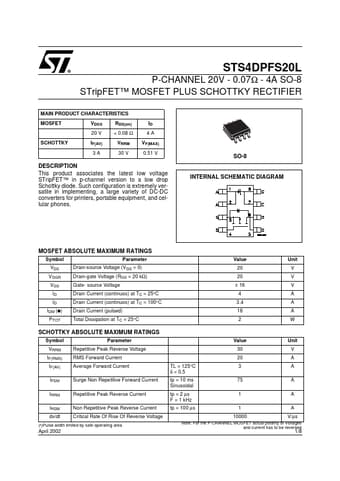

STS4DPFS20L Datasheet Preview — Preview of STS4DPFS20L PDF

Datasheet Details

Part number:

STS4DPFS20L

Manufacturer:

STMicroelectronics ↗

File Size:

259.97 KB

Description:

P-channel power mosfet.
P-CHANNEL 20V - 0.07Ω - 4A SO-8 STripFET™ MOSFET PLUS SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS MOSFET VDSS 20 V SCHOTTKY IF(AV) 3A RDS(on) < 0..
