STS4DPFS2LS Datasheet - ST Microelectronics

STS4DPFS2LS P-CHANNEL POWER MOSFET

This product associates the latest low voltage STripFET™ in p-channel version to a low drop Schottky diode. Such configuration is extremely versatile in implementing, a large variety of DC-DC converters for printers, portable equipment, and cellular phones. INTERNAL SCHEMATIC DIAGRAM MOSFET ABSOLU.

STS4DPFS2LS_STMicroelectronics.pdf

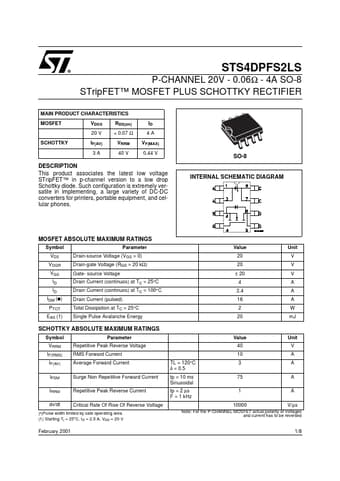

Preview of STS4DPFS2LS PDF
STS4DPFS2LS Datasheet Preview Page 2 STS4DPFS2LS Datasheet Preview Page 3

Datasheet Details

Part number:

STS4DPFS2LS

Manufacturer:

STMicroelectronics ↗

File Size:

264.96 KB

Description:

P-channel power mosfet.
