STS8C5H30L, Power MOSFET

www.DataSheet4U.com STS8C5H30L N-CHANNEL 30V - 0.018Ω - 8A SO-8 P-CHANNEL 30V - 0.045Ω - 5A SO-8 LOW GATE CHARGE StripFET™ III MOSFET Table 1: Genera.
This MOSFET is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

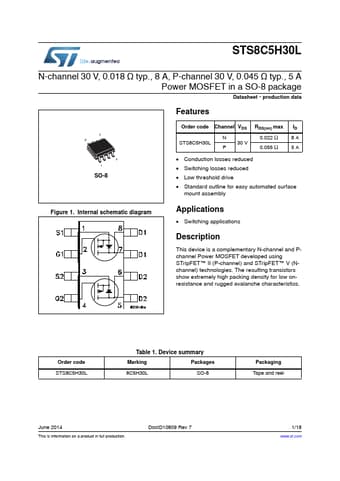

datasheet Preview Page 1 from Datasheet4u.com

STS8C5H30L_STMicroelectronics.pdf

STS8C5H30L Datasheet Preview — Preview of STS8C5H30L PDF

Datasheet Details

Part number:

STS8C5H30L

Manufacturer:

STMicroelectronics ↗

File Size:

823.28 KB

Description:

Power MOSFET

Features

* TYPE STS8C5H30L (N-Channel) STS8C5H30L (P-Channel) s s s s s s Figure 1: Package RDS(on) < 0.022 Ω < 0.055 Ω ID 8A 5A VDSS 30 V 30 V TYPICAL RDS(on) (N-Channel) = 0.018 Ω TYPICAL RDS(on) (P-Channel) = 0.045 Ω CONDUCTION LOSSES REDUCED SWITCHING LOSSES REDUCED LOW THRESHOLD DRIVE STANDARD OUTLINE

Applications

* s DC/DC CONVERTERS s BATTERY MANAGEMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN CELLULAR PHONES s DC MOTOR DRIVE Table 2: Order Codes PART NUMBER STS8C5H30L MARKING S8C5H30L PACKAGE SO-8 PACKAGING TAPE & REEL Rev. 2 September 2004 1/11 STS8C5H30L Table 3: Absolute Maximum ratings Symbol VDS VD
