STTH302 HIGH EFFICIENCY ULTRAFAST DIODE

STTH302 Description

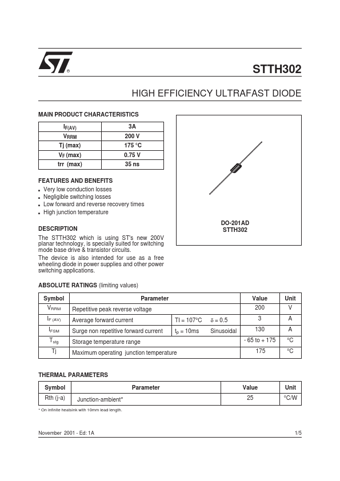

® STTH302 HIGH EFFICIENCY ULTRAFAST DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) trr (max) 3A 200 V 175 °C 0.75 V 35 ns FEAT.
The STTH302 which is using ST's new 200V planar technology, is specially suited for switching mode base drive & transistor circuits.

STTH302 Applications

* DO-201AD STTH302 ABSOLUTE RATINGS (limiting values) Symbol VRRM IF (AV) IFSM Tstg Tj Parameter Repetitive peak reverse voltage Average forward current TI = 107°C Surge non repetitive forward current tp = 10ms Storage temperature range Maximum operating junction temperature Value 200 δ =
