STTH3L06 ultrafast high-voltage rectifier

ST Microelectronics

Description

STTH3L06 Turbo 2 ultrafast high voltage rectifier Datasheet - production data A A K SMB K A K SMC DO-201AD .
This device uses ST Turbo 2 600 V technology, and is particularly suited as boost diode in discontinuous or critical mode power factor corrections.

📥 Download Datasheet

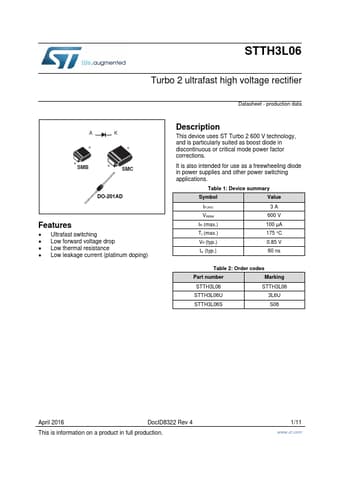

STTH3L06 Datasheet Preview — Preview of STTH3L06 PDF

Datasheet Specifications

Part number: STTH3L06
Manufacturer: STMicroelectronics ↗
File Size: 406.42 KB
Datasheet: STTH3L06_STMicroelectronics.pdf
Description: ultrafast high-voltage rectifier

Features

* Ultrafast switching
* Low forward voltage drop
* Low thermal resistance

Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM IR (max. ) Tj (max. ) VF (typ. ) trr (typ. ) 3A 600 V 100 µA 175 °C 0.85 V 60 ns Table 2: Order codes Part number Marking STTH3L06 STTH3L06 STTH3L06U 3L6U STTH3L06S S06 April 2016 DocID8322 Rev 4 This is information on a product in full
