STTH3L06-Y

ultrafast rectifier

STTH3L06-Y Features

* SMB Flat Wettable leads

* AEC-Q101 qualified

* Ultrafast recovery

* Low switching losses

* High surge capability

* Low leakage current

* High junction temperature

* ECOPACK2 or ECOPACK3 compliant component on demand

* VRRM guaranteed

STTH3L06-Y General Description

The STTH3L06-Y is an ultrafast recovery power rectifier dedicated to energy recovery in automotive application housed in SMB Flat to improve space saving. It is especially designed for clamping function in energy recovery block. The compromise between forward voltage drop and recovery time offers o.

STTH3L06-Y Datasheet (313.08 KB)

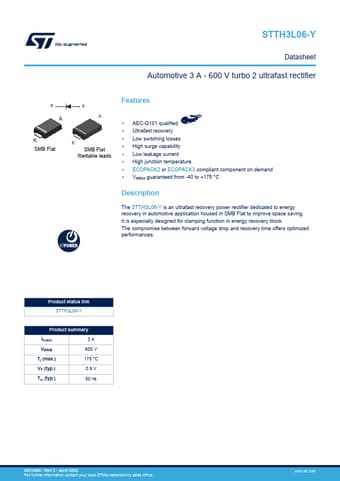

Preview of STTH3L06-Y PDF

Datasheet Details

Part number:

STTH3L06-Y

Manufacturer:

STMicroelectronics ↗

File Size:

313.08 KB

Description:

Ultrafast rectifier.
