STTH3R06 Datasheet, Diode, ST Microelectronics

STTH3R06 Features

  • Diode
  • Ultrafast switching
  • Low forwarded voltage drop
  • Low thermal resistance
  • Low leakage current (platinium doping)
  • Planar technology

PDF File Details

Part number:

STTH3R06

Manufacturer:

STMicroelectronics ↗

File Size:

222.19kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. The STTH3R06, which uses ST ultrafast high voltage planar technology, is specially suited for free-wheeling, clamping, snubbering, de

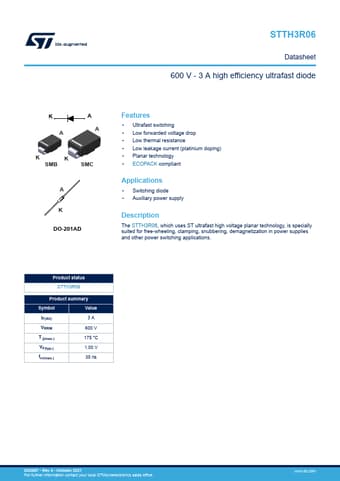

Datasheet Preview: STTH3R06 📥 Download PDF (222.19kb)
Page 2 of STTH3R06 Page 3 of STTH3R06

STTH3R06 Application

  • Applications
  • Switching diode
  • Auxiliary power supply Description The STTH3R06, which uses ST ultrafast high voltage planar techno
