STTH3R06-Y Datasheet, Rectifier, STMicroelectronics

STTH3R06-Y Features

  • Rectifier SMB Flat Wettable leads
  • AEC-Q101 qualified
  • Ultrafast recovery
  • Low switching losses
  • High surge capability
  • Low leakage current

PDF File Details

Part number:

STTH3R06-Y

Manufacturer:

STMicroelectronics ↗

File Size:

311.25kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast rectifier. The STTH3R06-Y is an ultrafast recovery power rectifier dedicated to energy recovery in automotive application housed in SMB Flat to

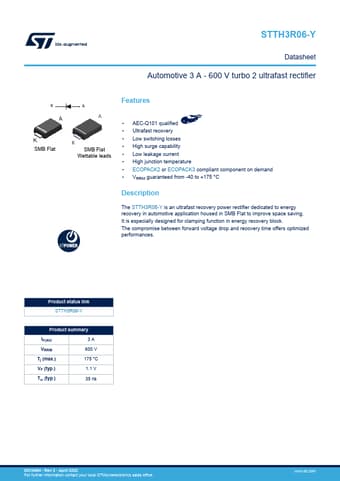

Datasheet Preview: STTH3R06-Y 📥 Download PDF (311.25kb)
Page 2 of STTH3R06-Y Page 3 of STTH3R06-Y
