STV5728 Datasheet - ST Microelectronics

4-HEAD VIDEO AND 2-HEADS HIFI AUDIO PLAYBACK AND RECORD AMPLIFIER FOR VCR

STV5728 General Description

STV5728 is intended for 4 heads VCR applications with HIFI. It includes all the electrical functions necessaryto achieveplay-back and record processing. Record or PlaybackMode can be selected through SWR Pin. SWH allows to select the video head input (H1SP or H2SP, H1LP or H2LP), while SWM will sele.

STV5728 Datasheet (114.35 KB)

STV5728 Datasheet Preview — Preview of STV5728 PDF

Datasheet Details

Part number:

STV5728

Manufacturer:

STMicroelectronics ↗

File Size:

114.35 KB

Description:

4-head video and 2-heads hifi audio playback and record amplifier for vcr.

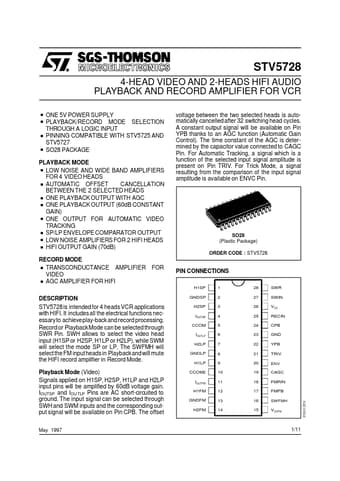

STV5728 4-HEAD VIDEO AND 2-HEADS HIFI AUDIO PLAYBACK AND RECORD AMPLIFIER FOR VCR PLAYBACK MODE LOW NOISE AND WIDE BAND AMPLIFIERS FOR 4 VIDEO HEADS .
