TSM1014 Datasheet - ST Microelectronics

TSM1014 - Low Consumption Voltage and Current Controller

TSM1014 is a highly integrated solution for SMPS applications requiring CV (constant voltage) and CC (constant current) mode.

TSM1014 integrates one voltage reference and two operational amplifiers.

The voltage reference combined with one operational amplifier makes it an ideal voltage controller.

T

www.DataSheet4U.com TSM1014 Low Consumption Voltage and Current Controller for Battery Chargers and Adaptors s s s s s s s s Constant voltage and constant current control Low consumption Low voltage operation Low external component count Current sink output stage Easy compensation High ac mains voltage rejection 2kV ESD protection (HBM) D SO-8 (Plastic Package) Voltage Reference: s s Fixed output voltage reference 1.25V 0.5% and 1% Voltage precision S MiniSO-8 (Plastic Micropackage) DESCRIPT

TSM1014 Features

* essary to add some circuitry to supply the chip with a separate power line. This can be achieved in a number of ways

TSM1014_STMicroelectronics.pdf

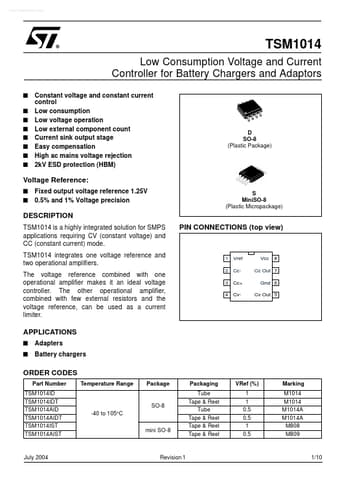

Preview of TSM1014 PDF
TSM1014 Datasheet Preview Page 2 TSM1014 Datasheet Preview Page 3

Datasheet Details

Part number:

TSM1014

Manufacturer:

STMicroelectronics ↗

File Size:

157.21 KB

Description:

Low consumption voltage and current controller.
