TSM1011

Constant Voltage and Constant Current Controller for Battery Chargers and Adapters

TSM1011 Features

* Constant voltage and constant current control

* Low voltage operation

* Low external component count

* Current sink output stage

* Easy compensation

* 2 kV ESD protection

* Voltage reference:

* Fixed output voltage reference 2.545 V

* 0.5% and 1% voltage

TSM1011 General Description

The TSM1011 is a highly integrated solution for SMPS applications requiring CV (constant voltage) and CC (constant current) modes. The TSM1011 device integrates one voltage reference and two operational amplifiers (with ORed outputs - common collectors). The voltage reference combined with one opera.

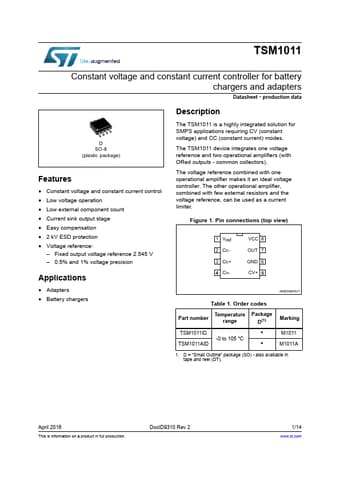

TSM1011 Datasheet (212.37 KB)

Preview of TSM1011 PDF

Datasheet Details

Part number:

TSM1011

Manufacturer:

STMicroelectronics ↗

File Size:

212.37 KB

Description:

Constant voltage and constant current controller for battery chargers and adapters.
TSM1011 Constant voltage and constant current controller for battery chargers and adapters Datasheet - production data % 40 QMBTUJD QBDLBHF Fea.
