TSM1012

Low consumption voltage and current controller

STMicroelectronics

TSM1012 Features

* Constant voltage and constant current control

* Low consumption

* Low voltage operation

* Low external component count

* Current sink output stage

* Easy compensation

* High ac mains voltage rejection

* Voltage reference

* Fixed output voltage reference 1.25

TSM1012 General Description

The TSM1012 is a highly integrated solution for SMPS applications requiring the CV (constant voltage) and CC (constant current) mode. TheTSM1012 device integrates one voltage reference and two operational amplifiers (with ORed outputs - common collectors). The voltage reference combined with one ope.

TSM1012 Datasheet (277.45 KB)

TSM1012 Datasheet Preview — Preview of TSM1012 PDF

Datasheet Details

Part number:

TSM1012

Manufacturer:

STMicroelectronics ↗

File Size:

277.45 KB

Description:

Low consumption voltage and current controller.

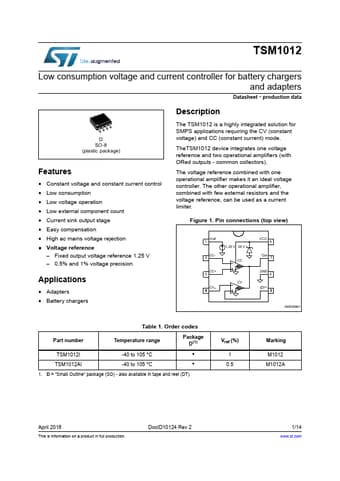

TSM1012 Low consumption voltage and current controller for battery chargers and adapters Datasheet - production data % 40 QMBTUJD QBDLBHF Featur.
