TSM100 Datasheet - STMicroelectronics

TSM100 SINGLE OPERATIONAL AMPLIFIER AND SINGLE COMPARATOR

The TSM100 is a monolithic IC that includes one independent op-amp and one independent comparator. This device is offering space and cost saving in many applications like power supply management or data acquisition systems. ORDER CODE Part Number TSM100I Temperature Range -40°C, +105°C Package D
TSM100 SINGLE OPERATIONAL AMPLIFIER AND SINGLE COMPARATOR OPERATIONAL AMPLIFIER s LOW INPUT OFFSET VOLTAGE : 0.5mV typ. s MEDIUM BANDWIDTH (unity gain) : 0.9MHz s LARGE OUTPUT VOLTAGE SWING : 0V to (VCC - 1.5V) s INPUT COMMON MODE VOLTAGE RANGE INCLUDES GROUND s WIDE POWER SUPPLY RANGE : 5 to 30V ±2.5 TO ±15V s ESD PROTECTION : 2kV COMPARATOR (OPEN COLLECTOR) D SO8 (Plastic Micropackage) s INPUT COMMON MODE VOLTAGE RANGE INCLUDES GROUND s LOW OUTPUT SATURATION VOLTAGE : 250mV @ Io = 4mA PI.

TSM100_STMicroelectronics.pdf

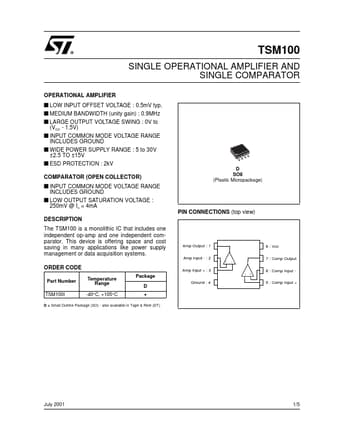

Preview of TSM100 PDF
TSM100 Datasheet Preview Page 2 TSM100 Datasheet Preview Page 3

Datasheet Details

Part number:

TSM100

Manufacturer:

STMicroelectronics ↗

File Size:

55.97 KB

Description:

Single operational amplifier and single comparator.
