GD100HHU120C6SD IGBT

STARPOWER

Description

GD100HHU120C6SD STARPOWER SEMICONDUCTOR GD100HHU120C6SD 1200V/100A 4 in one-package General .
STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

📥 Download Datasheet

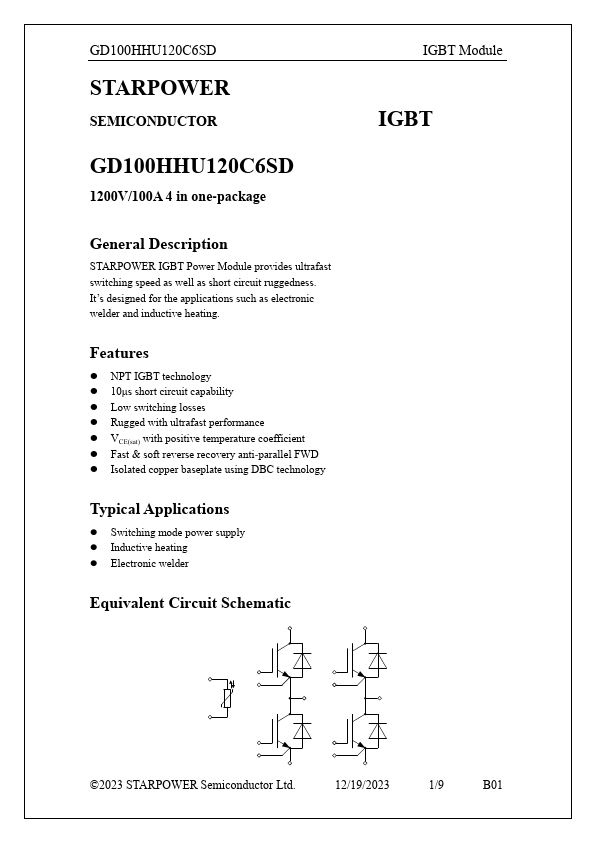

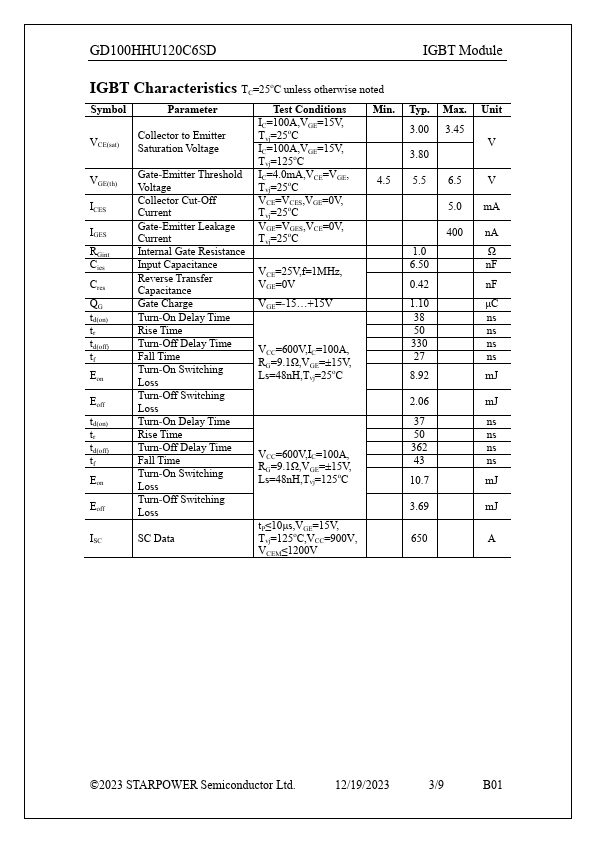

GD100HHU120C6SD Datasheet Preview — Preview of GD100HHU120C6SD PDF

Datasheet Specifications

Part number: GD100HHU120C6SD
Manufacturer: STARPOWER
File Size: 416.03 KB
Datasheet: GD100HHU120C6SD-STARPOWER.pdf
Description: IGBT

Features

* NPT IGBT technology
* 10μs short circuit capability
* Low switching losses
* Rugged with ultrafast performance
* VCE(sat) with positive temperature coefficient
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technology Typical Appl
