GD10PJY120L1S Datasheet - STARPOWER

GD10PJY120L1S, IGBT

GD10PJY120L1S STARPOWER SEMICONDUCTOR GD10PJY120L1S 1200V/10A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

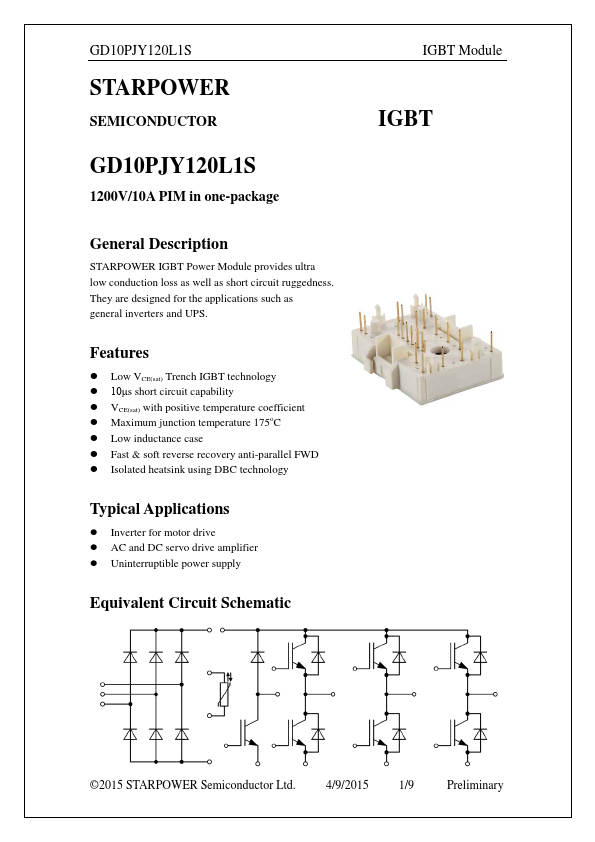

datasheet Preview Page 1 from Datasheet4u.com

GD10PJY120L1S-STARPOWER.pdf

GD10PJY120L1S Datasheet Preview — Preview of GD10PJY120L1S PDF

Datasheet Details

Part number:

GD10PJY120L1S

Manufacturer:

STARPOWER

File Size:

206.80 KB

Description:

IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology Typi
