GD25PIX120C5S - IGBT

GD25PIX120C5S Description

GD25PIX120C5S STARPOWER SEMICONDUCTOR GD25PIX120C5S 1200V/25A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

GD25PIX120C5S Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol

📥 Download Datasheet

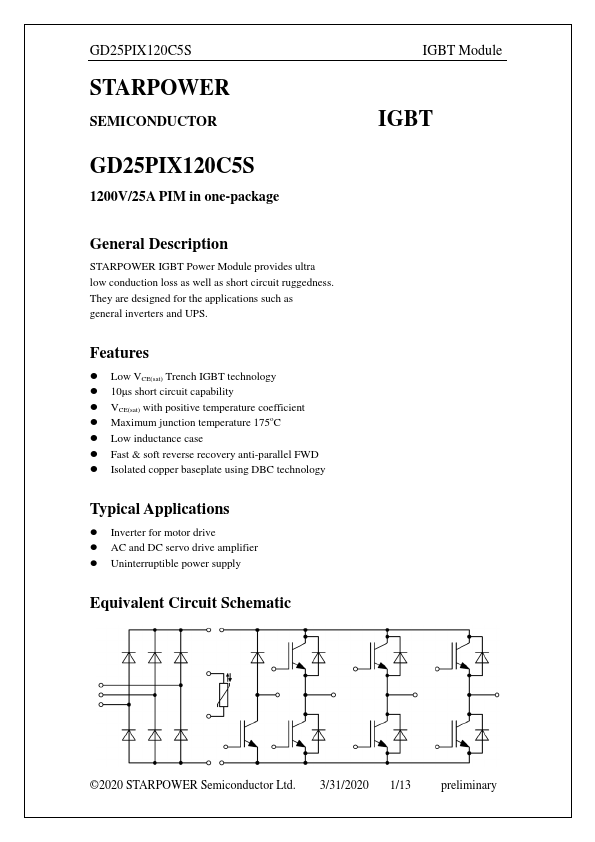

Preview of GD25PIX120C5S PDF

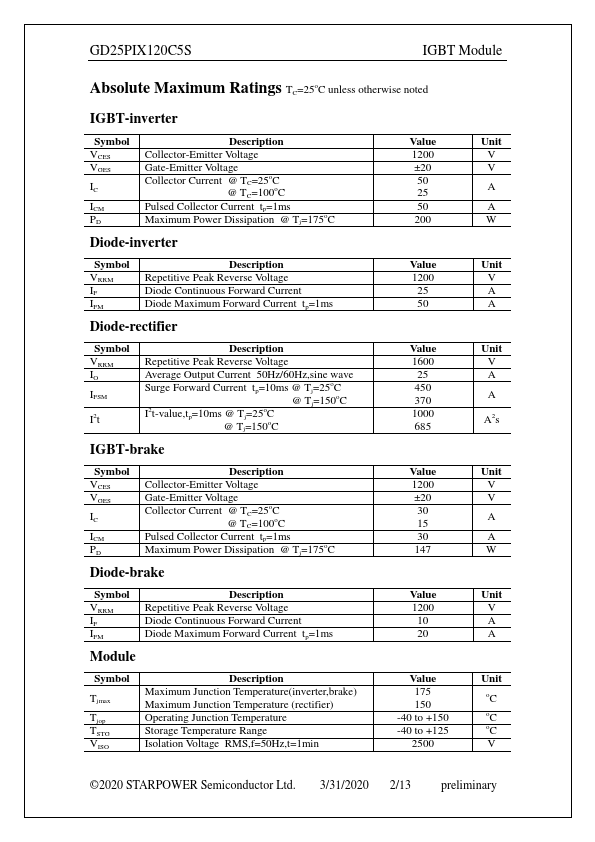

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GD25PIX120C5S
Manufacturer
STARPOWER
File Size
476.54 KB
Datasheet
GD25PIX120C5S-STARPOWER.pdf
Description
IGBT
