GD25PIY120C5SN - IGBT

GD25PIY120C5SN Description

GD25PIY120C5SN STARPOWER SEMICONDUCTOR GD25PIY120C5SN 1200V/25A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

GD25PIY120C5SN Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol

📥 Download Datasheet

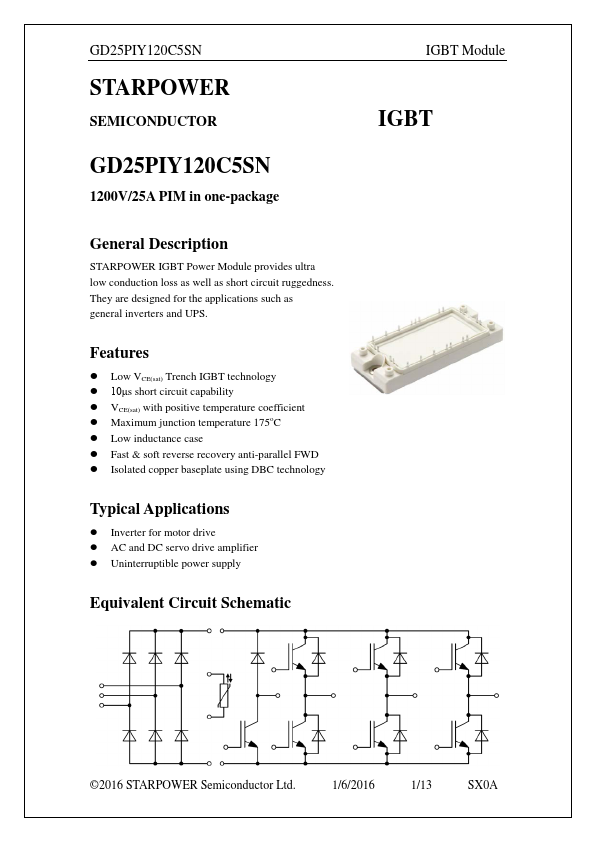

Preview of GD25PIY120C5SN PDF

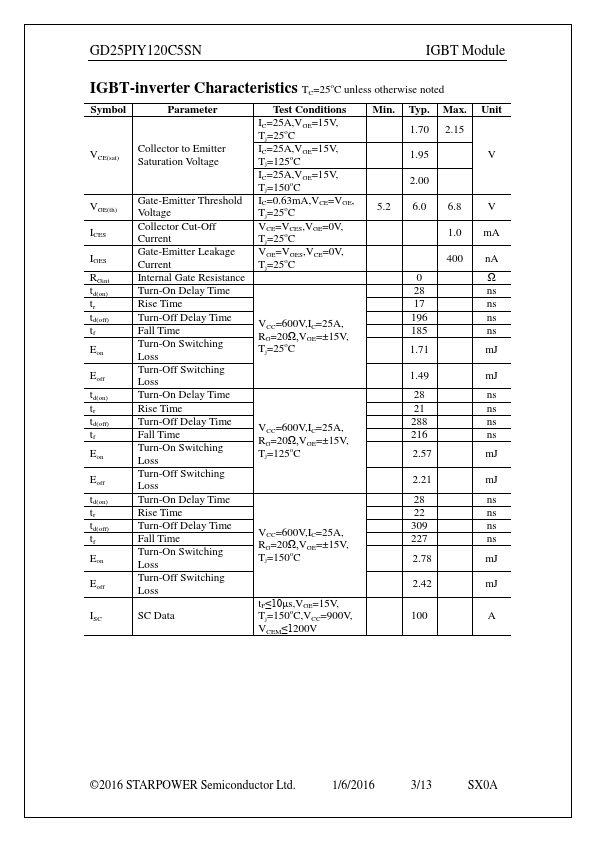

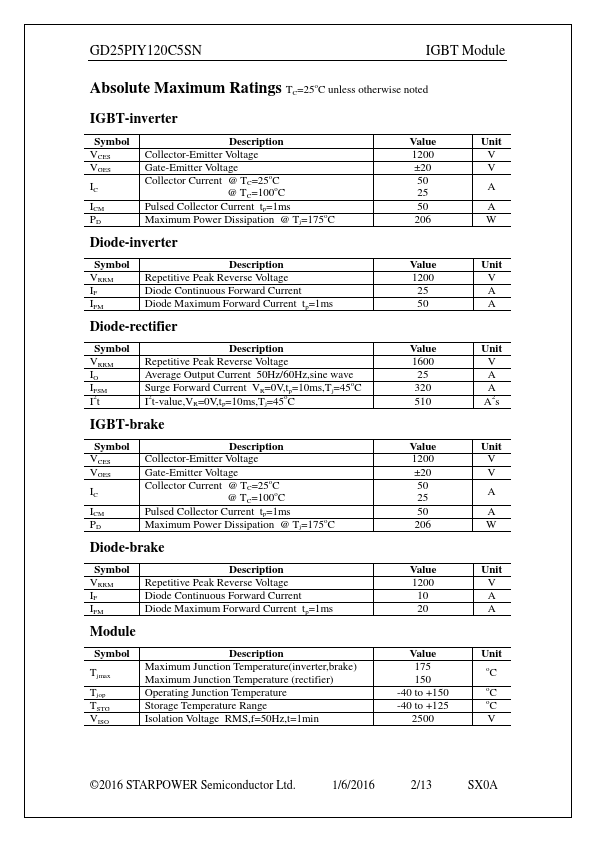

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GD25PIY120C5SN
Manufacturer
STARPOWER
File Size
320.71 KB
Datasheet
GD25PIY120C5SN-STARPOWER.pdf
Description
IGBT
