GD30PJX65L2S - IGBT

STARPOWER

📥 Download Datasheet

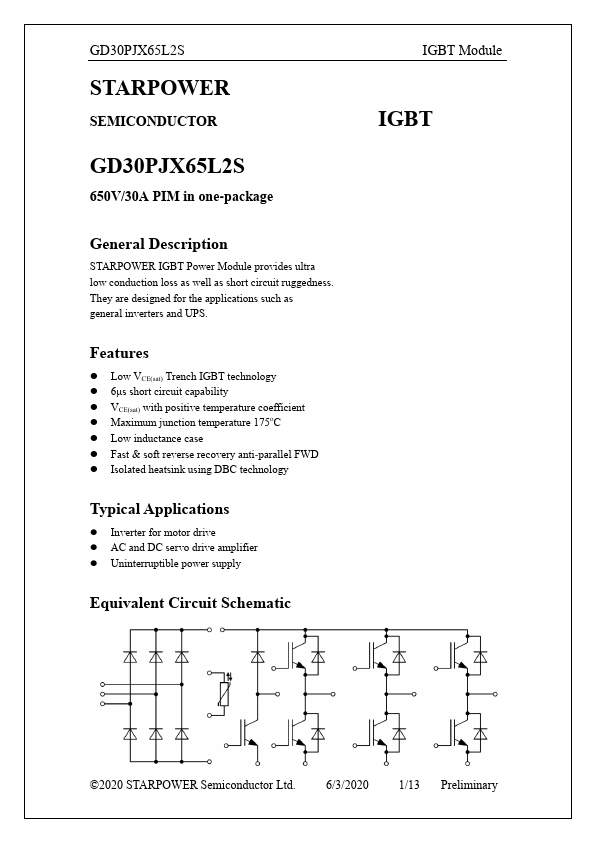

GD30PJX65L2S Datasheet Preview — Preview of GD30PJX65L2S PDF

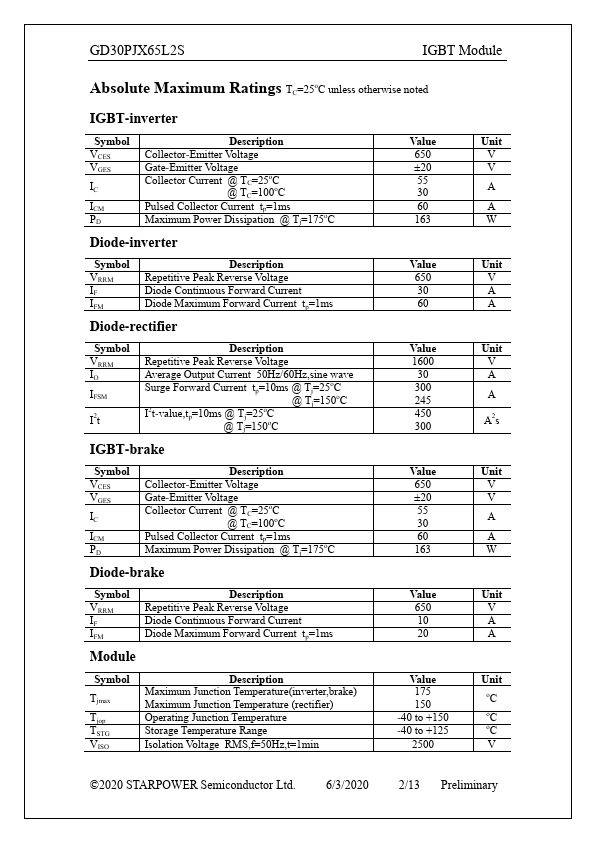

datasheet Preview Page 2

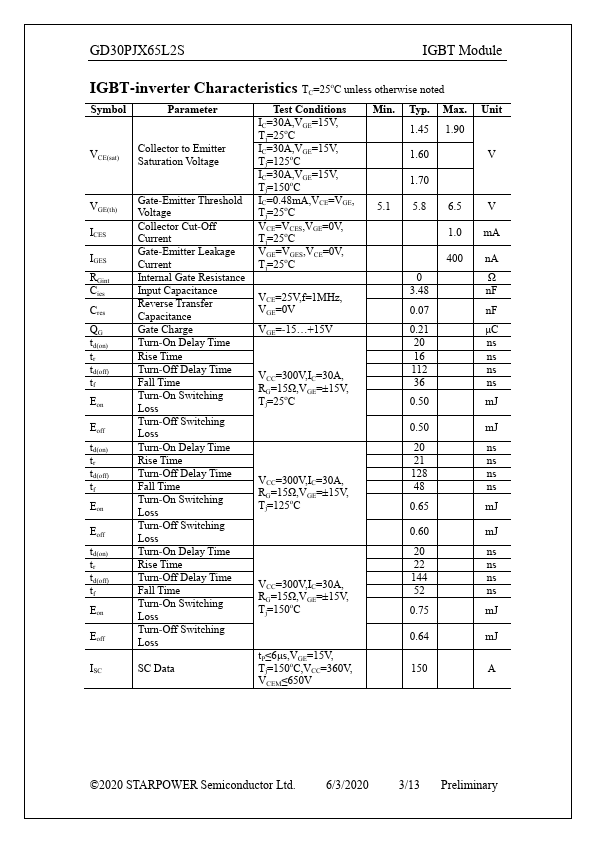

datasheet Preview Page 3

Datasheet Details

Part number	GD30PJX65L2S
Manufacturer	STARPOWER
File Size	651.44 KB
Description	IGBT
Datasheet	GD30PJX65L2S-STARPOWER.pdf

GD30PJX65L2S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
