GD30PJX65L2SF - IGBT

STARPOWER

📥 Download Datasheet

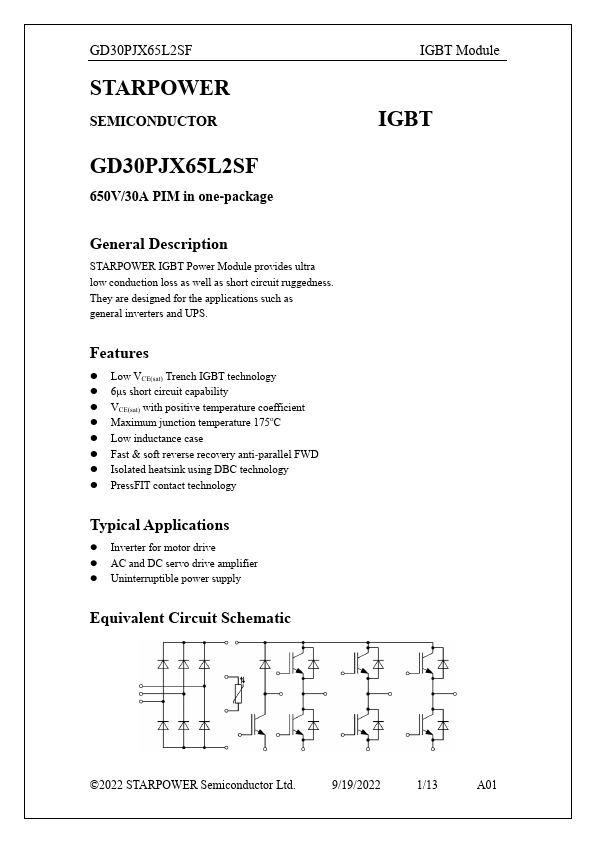

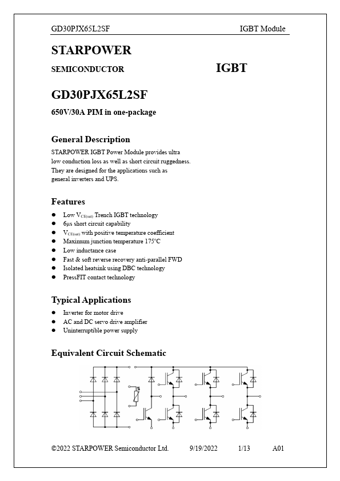

GD30PJX65L2SF Datasheet Preview — Preview of GD30PJX65L2SF PDF

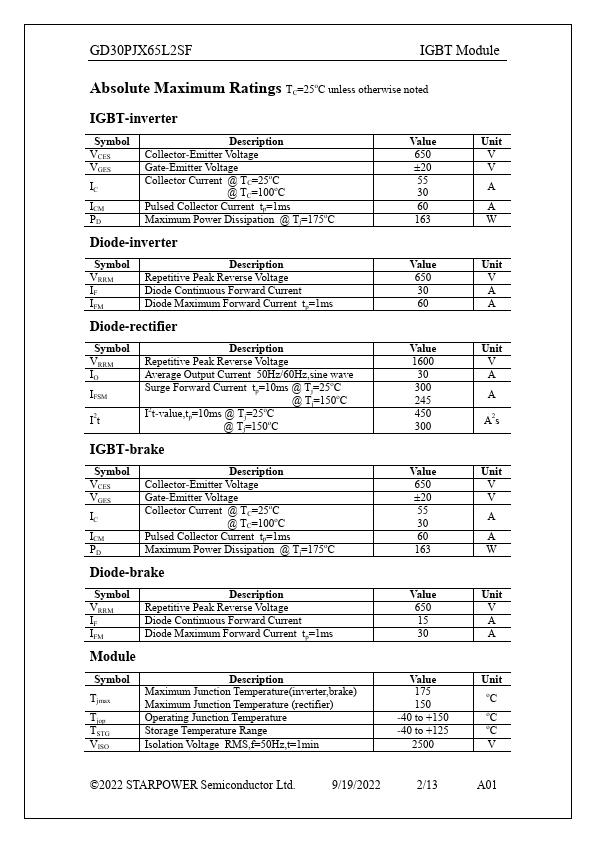

datasheet Preview Page 2

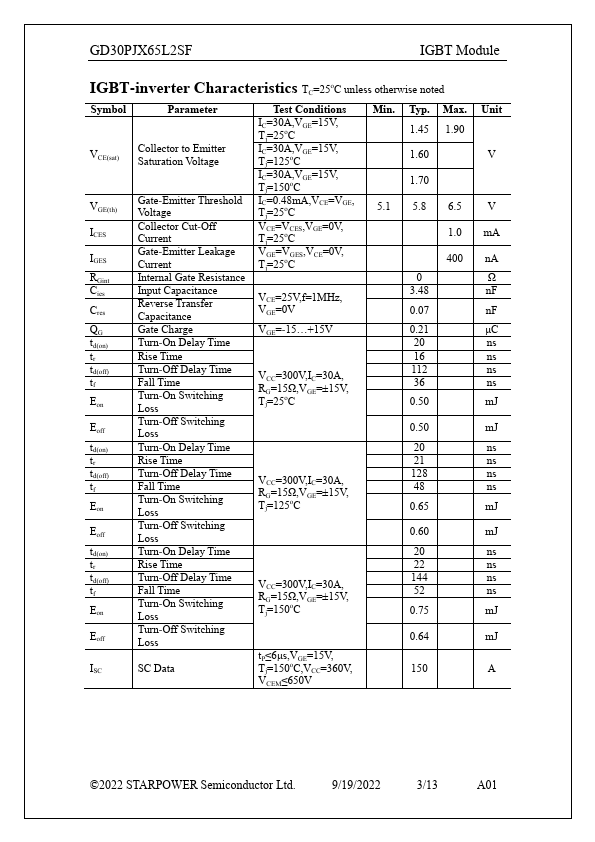

datasheet Preview Page 3

Datasheet Details

Part number	GD30PJX65L2SF
Manufacturer	STARPOWER
File Size	665.35 KB
Description	IGBT
Datasheet	GD30PJX65L2SF-STARPOWER.pdf

GD30PJX65L2SF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology.
PressFIT contact technology Typical.
