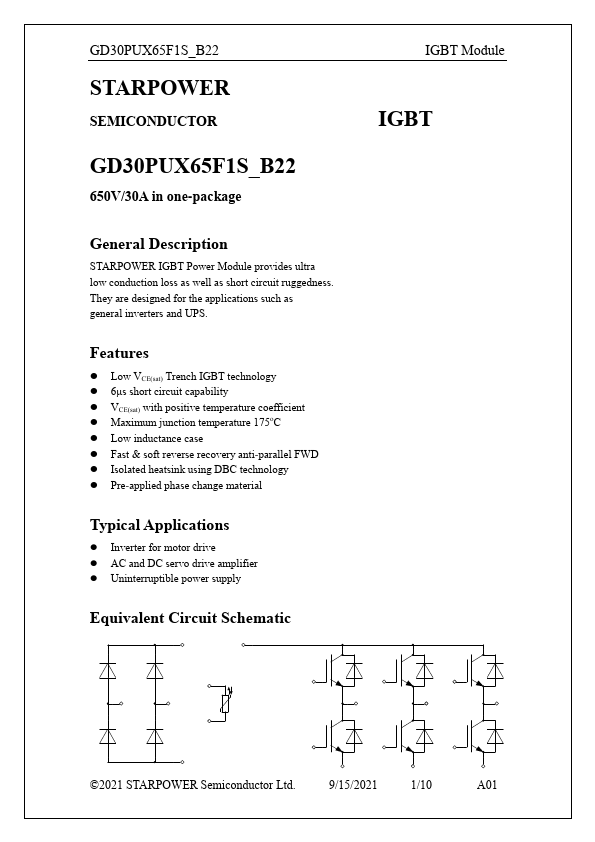

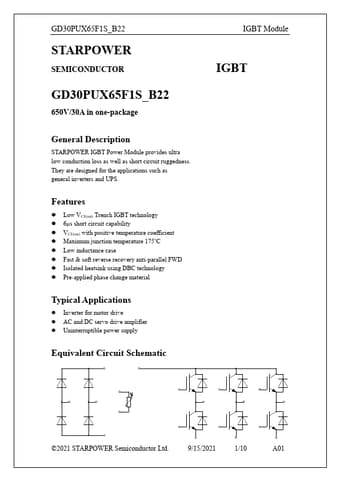

GD30PUX65F1S_B22 Datasheet Preview — Preview of GD30PUX65F1S_B22 PDF

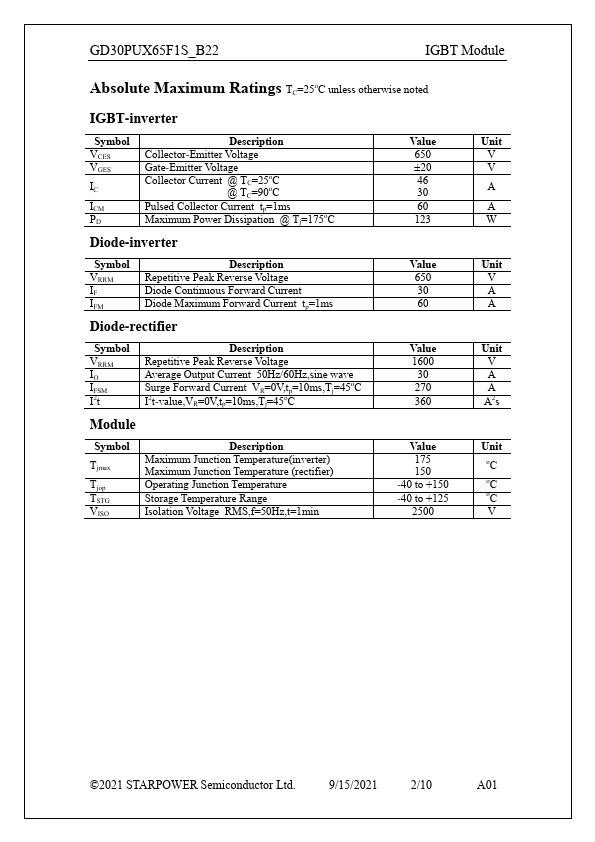

datasheet Preview Page 2

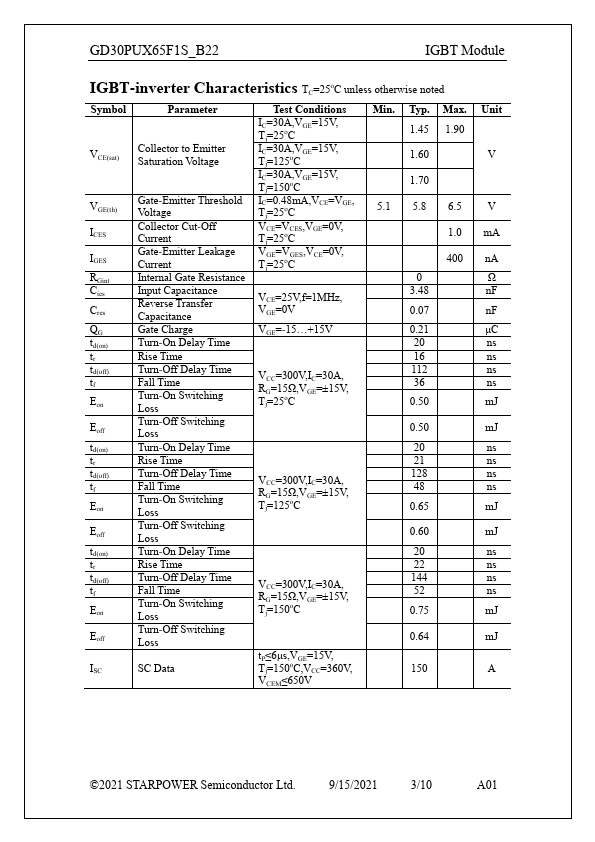

datasheet Preview Page 3

Datasheet Details

Part number	GD30PUX65F1S_B22
Manufacturer	STARPOWER
File Size	461.97 KB
Description	IGBT
Datasheet	GD30PUX65F1S_B22-STARPOWER.pdf

GD30PUX65F1S_B22 Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology.
Pre-applied phase change material Typical.
