Description

GD3600SGX170C4S STARPOWER SEMICONDUCTOR GD3600SGX170C4S 1700V/3600A 1 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

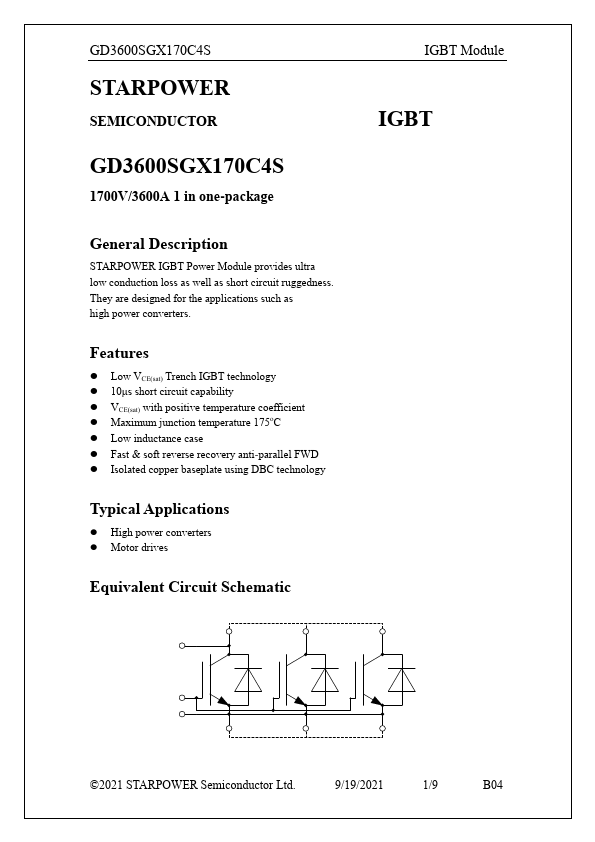

GD3600SGX170C4S Datasheet Preview — Preview of GD3600SGX170C4S PDF

Datasheet Specifications

Part number: GD3600SGX170C4S
Manufacturer: STARPOWER
File Size: 370.36 KB
Datasheet: GD3600SGX170C4S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
