GD3600SGY120C4S - IGBT

STARPOWER

📥 Download Datasheet

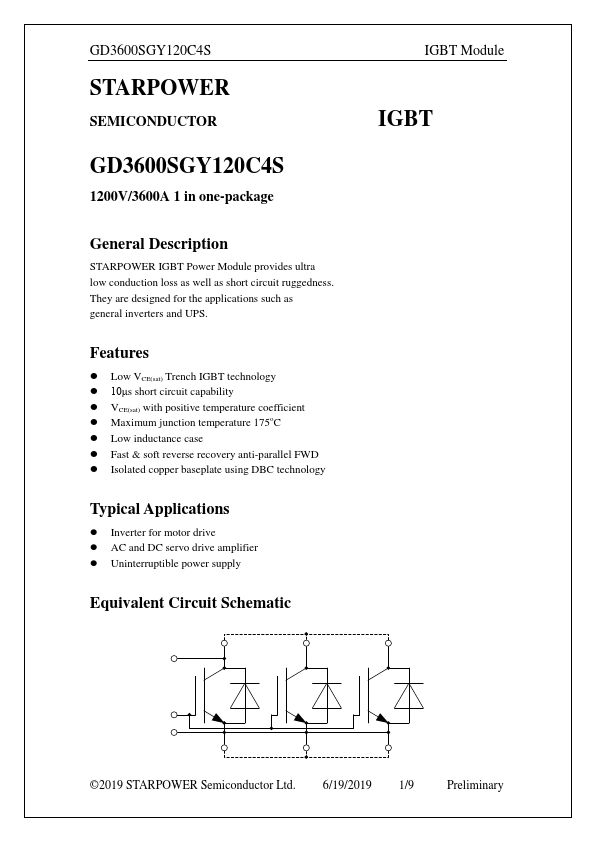

GD3600SGY120C4S Datasheet Preview — Preview of GD3600SGY120C4S PDF

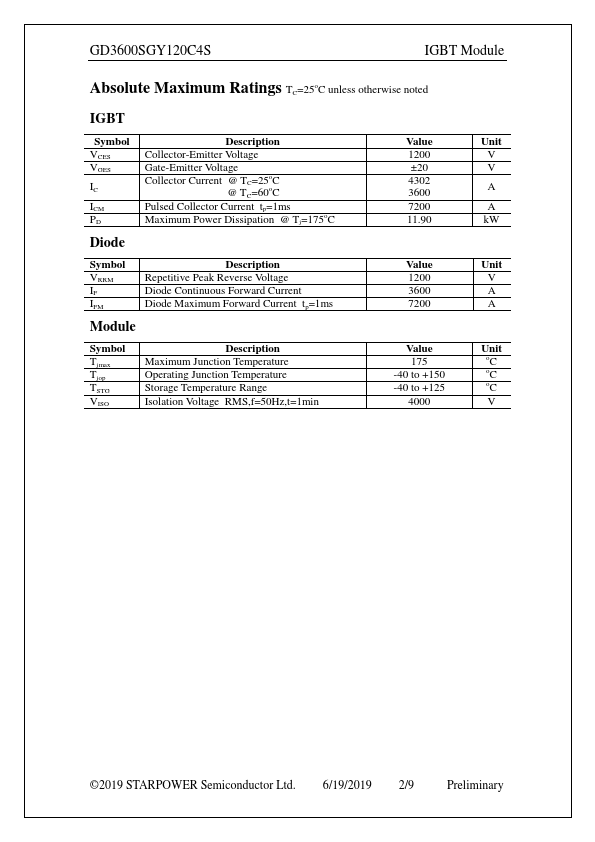

datasheet Preview Page 2

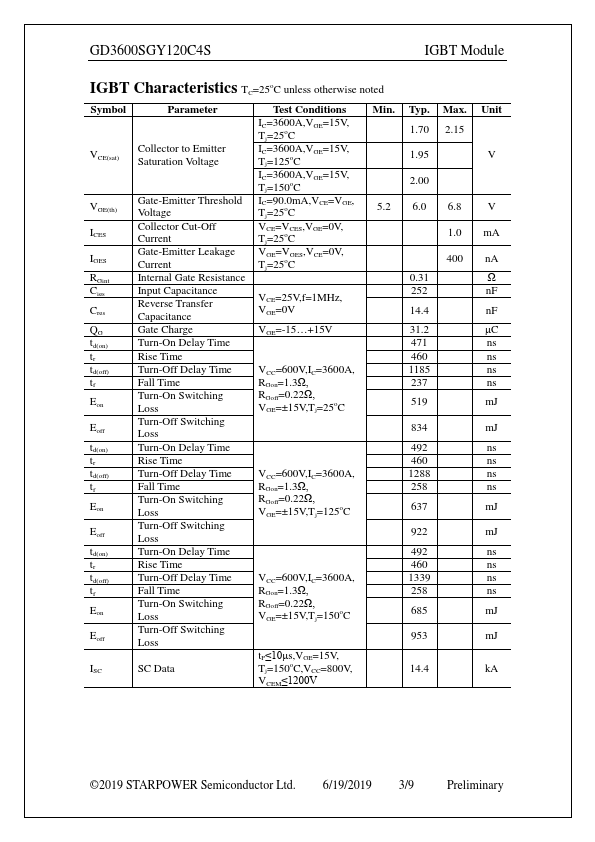

datasheet Preview Page 3

Datasheet Details

Part number	GD3600SGY120C4S
Manufacturer	STARPOWER
File Size	168.85 KB
Description	IGBT
Datasheet	GD3600SGY120C4S-STARPOWER.pdf

GD3600SGY120C4S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
