GD360HTA120P7HT_T1 IGBT

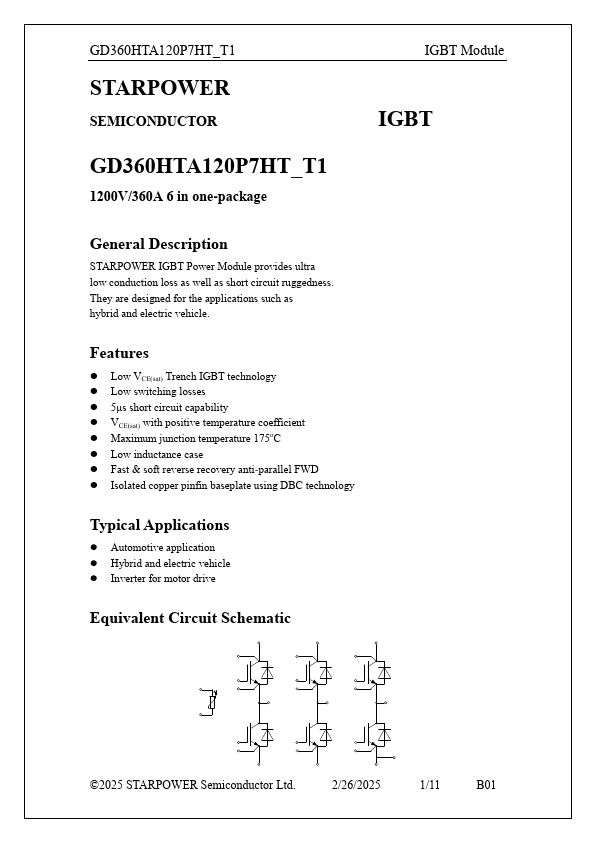

📥 Download Datasheet Datasheet Preview Page 1

Description

GD360HTA120P7HT_T1 STARPOWER SEMICONDUCTOR GD360HTA120P7HT_T1 1200V/360A 6 in one-package IGBT Module IGBT General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

Preview of GD360HTA120P7HT_T1 PDF

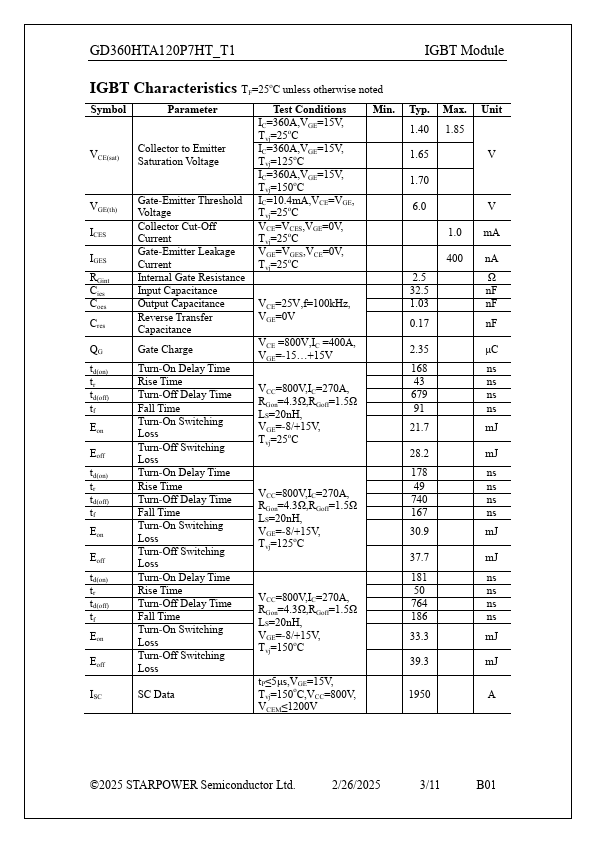

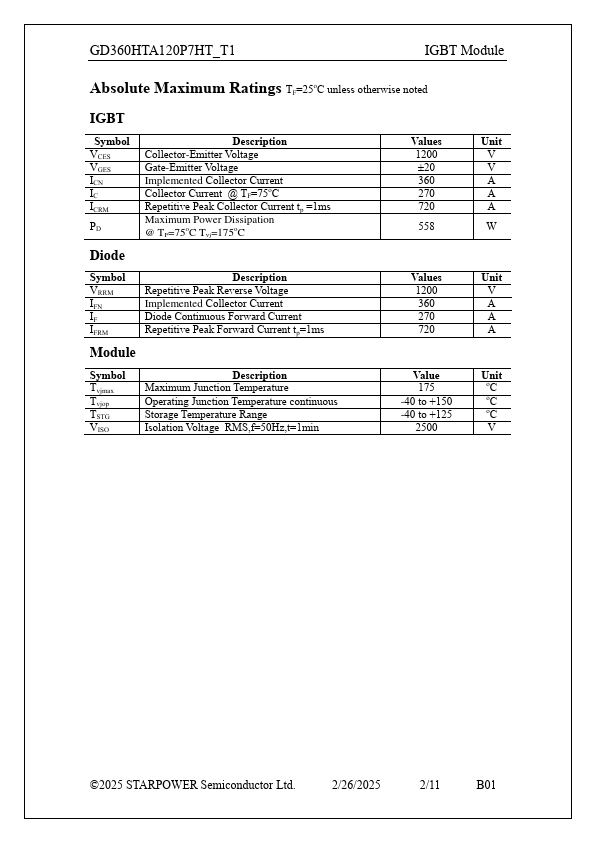

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 5μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper p
