GD50FSX65L2S - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

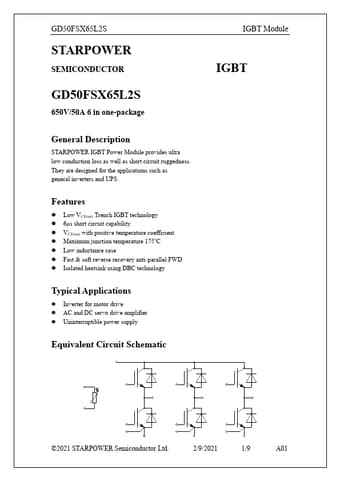

GD50FSX65L2S IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD50FSX65L2S

Datasheet Details

Part number	GD50FSX65L2S
Manufacturer	STARPOWER
File Size	486.89 KB
Description	IGBT
Datasheet	GD50FSX65L2S Datasheet
Additional preview pages of the GD50FSX65L2S datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
