GD75FFK120C6SD - IGBT

STARPOWER

📥 Download Datasheet

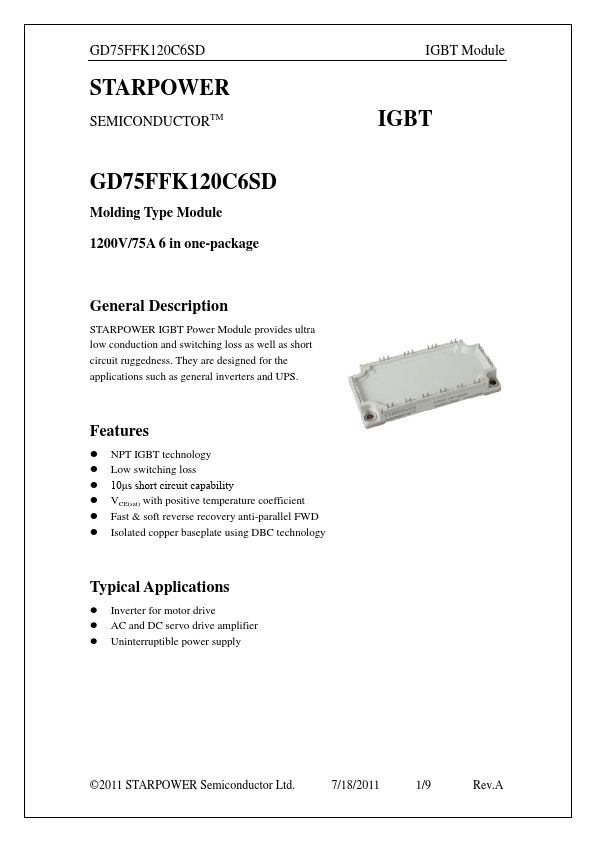

GD75FFK120C6SD Datasheet Preview — Preview of GD75FFK120C6SD PDF

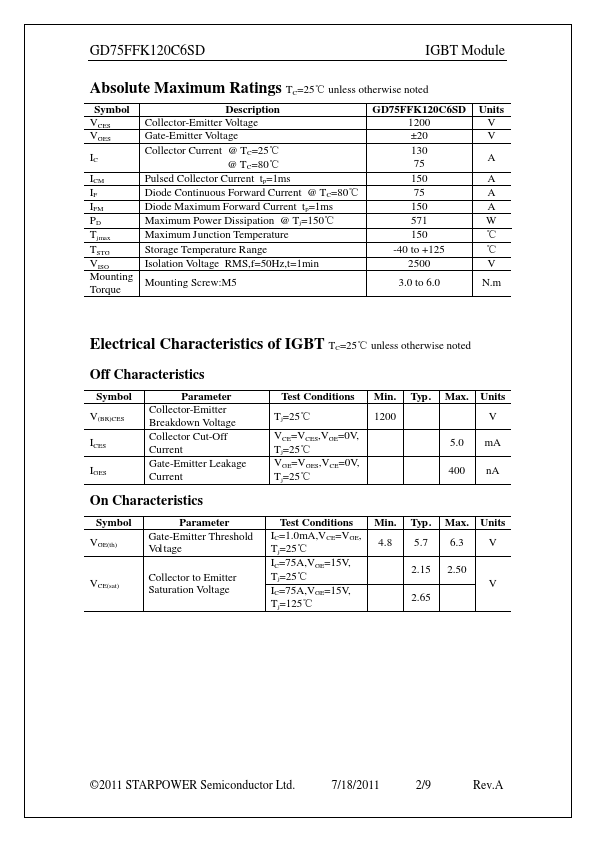

datasheet Preview Page 2

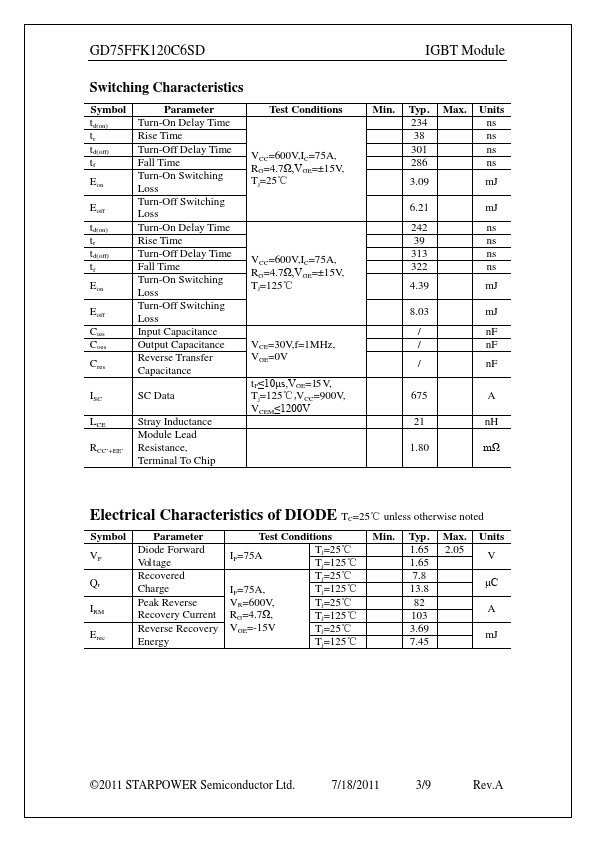

datasheet Preview Page 3

Datasheet Details

Part number	GD75FFK120C6SD
Manufacturer	STARPOWER
File Size	245.63 KB
Description	IGBT
Datasheet	GD75FFK120C6SD-STARPOWER.pdf

GD75FFK120C6SD Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction and switching loss as well as short circuit ruggedness.

Features

NPT IGBT technology.
Low switching loss.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
