GD75FSA120L3S - IGBT

STARPOWER

📥 Download Datasheet

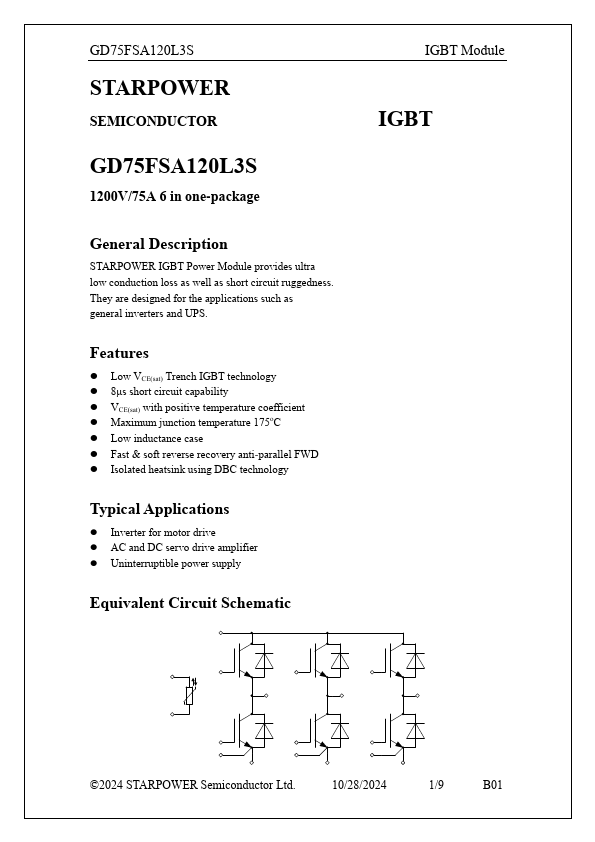

GD75FSA120L3S Datasheet Preview — Preview of GD75FSA120L3S PDF

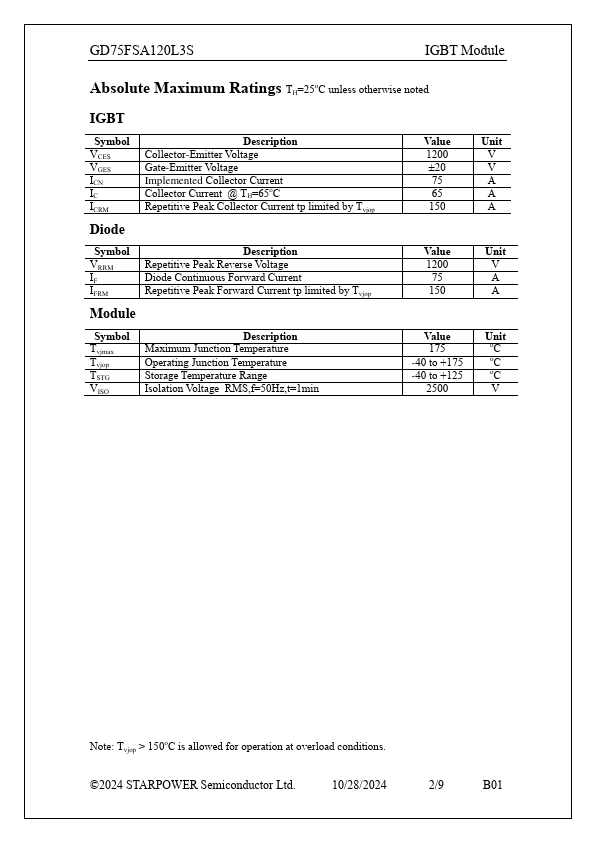

datasheet Preview Page 2

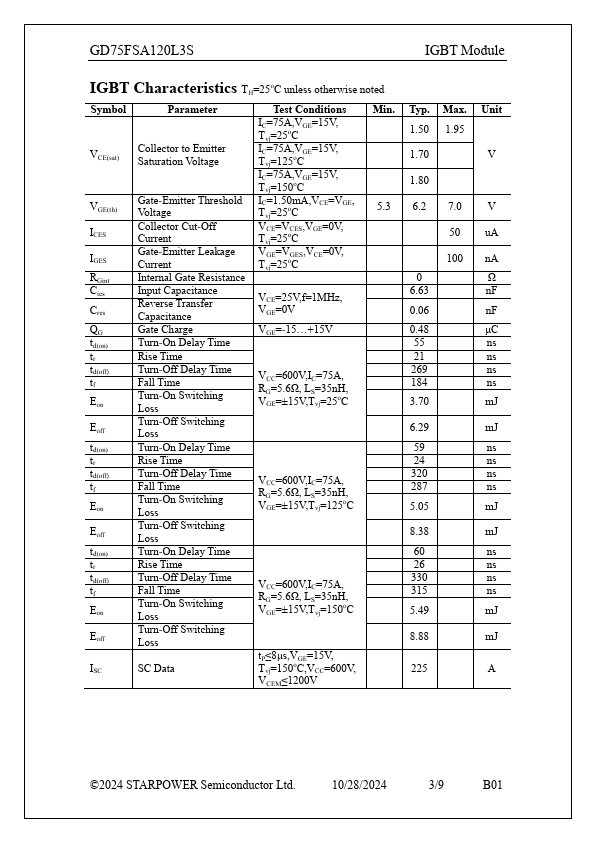

datasheet Preview Page 3

Datasheet Details

Part number	GD75FSA120L3S
Manufacturer	STARPOWER
File Size	531.40 KB
Description	IGBT
Datasheet	GD75FSA120L3S-STARPOWER.pdf

GD75FSA120L3S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
8μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology Typical.
