GD75FSX120L3SF_B22 IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

GD75FSX120L3SF_B22 STARPOWER SEMICONDUCTOR GD75FSX120L3SF_B22 1200V/75A 6 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

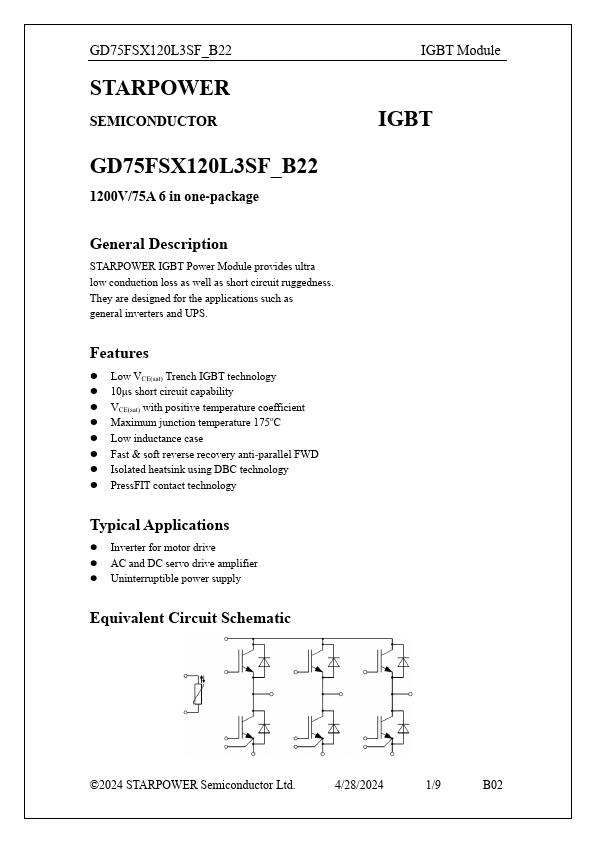

Preview of GD75FSX120L3SF_B22 PDF

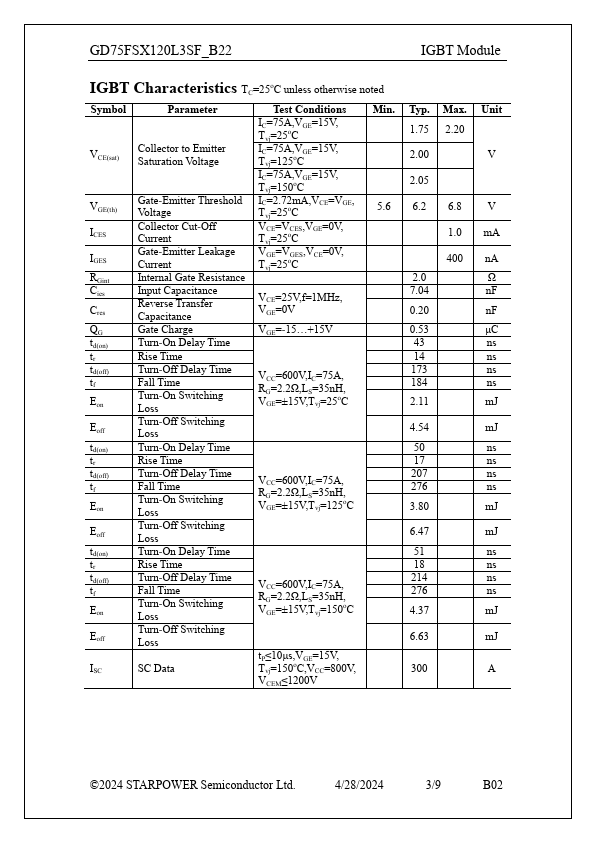

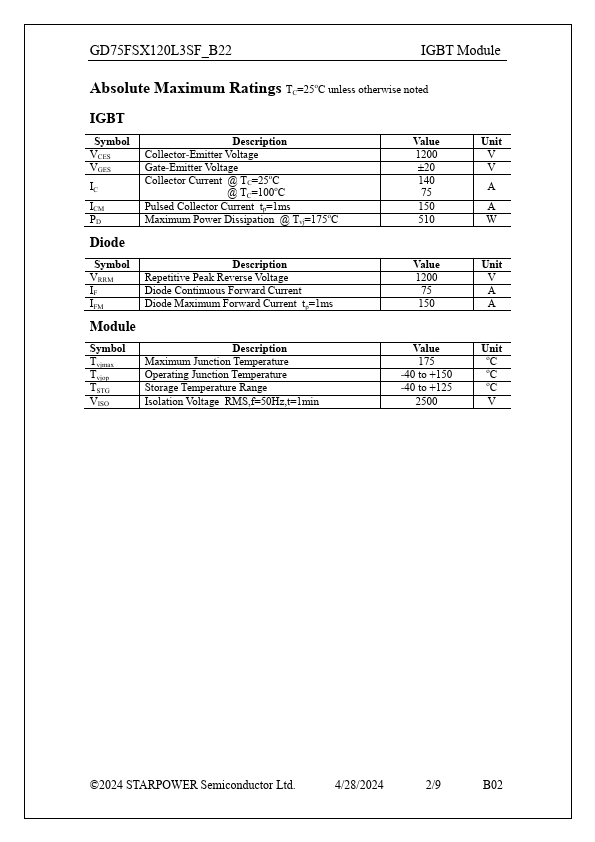

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology
