GD75PIL120C6S, IGBT

GD75PIL120C6S STARPOWER SEMICONDUCTOR GD75PIL120C6S 1200V/75A PIM in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

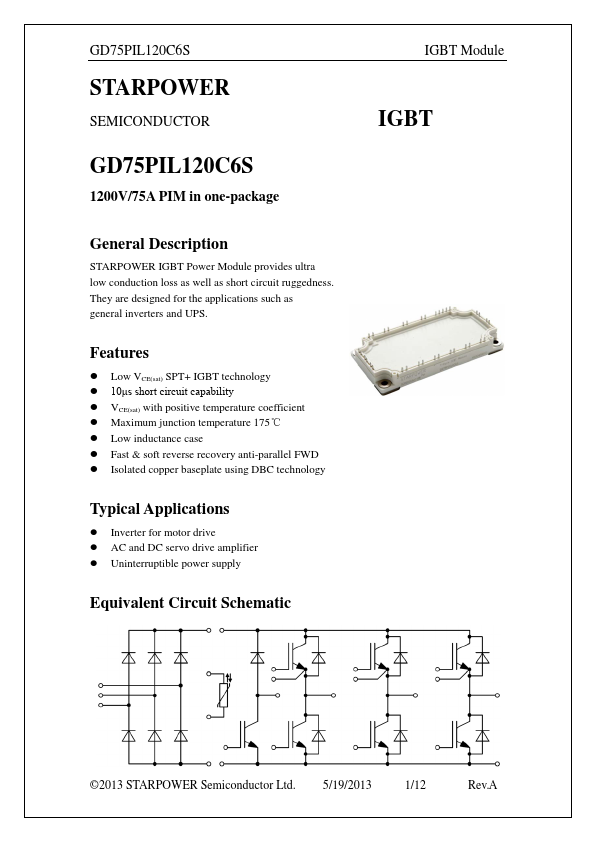

datasheet Preview Page 1 from Datasheet4u.com

GD75PIL120C6S-STARPOWER.pdf

GD75PIL120C6S Datasheet Preview — Preview of GD75PIL120C6S PDF

Datasheet Details

Part number:

GD75PIL120C6S

Manufacturer:

STARPOWER

File Size:

562.20 KB

Description:

IGBT

Features

* Low VCE(sat) SPT+ IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175℃
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technology
